VOLTAGE REGULATOR PWM 5V 12V 10A MOTOR SPEED CONTROLLER

 • Versatile Voltage Regulation : This product offers a wide range of voltage regulation from 5V to 12V, making it suitable for a variety of applications.

• Powerful Current Control : With a current control limit of 10A, this device effectively manages the power supply to ensure optimal performance of your DC motor.

• PWM Technology : Equipped with PWM technology, this voltage regulator ensures smooth and efficient operation of your motor, enhancing its longevity and performance.

• Stepless Speed Governor : The stepless speed governor feature allows for precise control over the speed of your DC motor, providing seamless operation and improving productivity.

• LED Dimmer Control : This product also includes LED dimmer control, allowing you to adjust the brightness of your lights as per your needs.

• Compact and Portable : Its compact design makes it easy to carry and install, making it an ideal choice for on-the-go users.

5V 12V 10A Voltage Regulator PWM DC Motor Speed Controller Governor Stepless Speed Regulator LED Dimmer Power Controller

Features:

• Voltage: DC 5V-16V

• Continuous Current: 10A

• Short maximum current: 20A (less than 10 seconds)

• Speed control mode: PWM steeples speed regulation, can also be used to adjust the light

• Control mode: speed control potentiometer (clockwise clicked open, continue to rotate clockwise from 1% to 99% speed)

• Duty cycle: 0%-99% (0% position is the state of the switch off when the potentiometer is most on the left)

Specification:

Voltage: DC 5V-16V

Continuous Current: 10A

Short maximum current: 20A (less than 10 seconds)

Speed control mode: PWM stepless speed regulation, can also be used to adjust the light

Control mode: speed control potentiometer (clockwise clicked open, continue to rotate clockwise from 1% to 99% speed)

Duty cycle: 0%-99% (0% position is the state of the switch off when the potentiometer is most on the left).

When the current is switched on, the 0.002A (long time no need to switch off the governor is no current).

Efficiency: the maximum efficiency is as high as 98%.

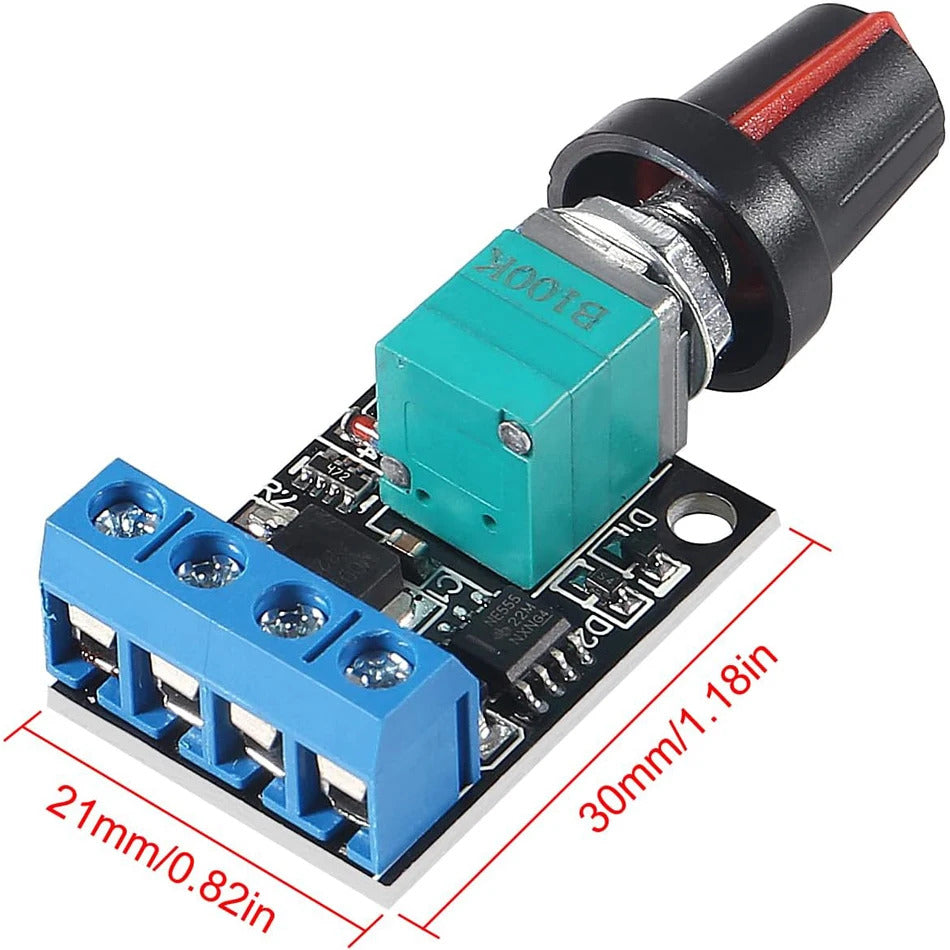

Volume: long 3cm (excluding potentiometer), wide 2cm, high 1.4cm

Package include:

1X5V 12V 10A Voltage Regulator PWM DC Motor Speed Controller

Please note control knob colours will vary
