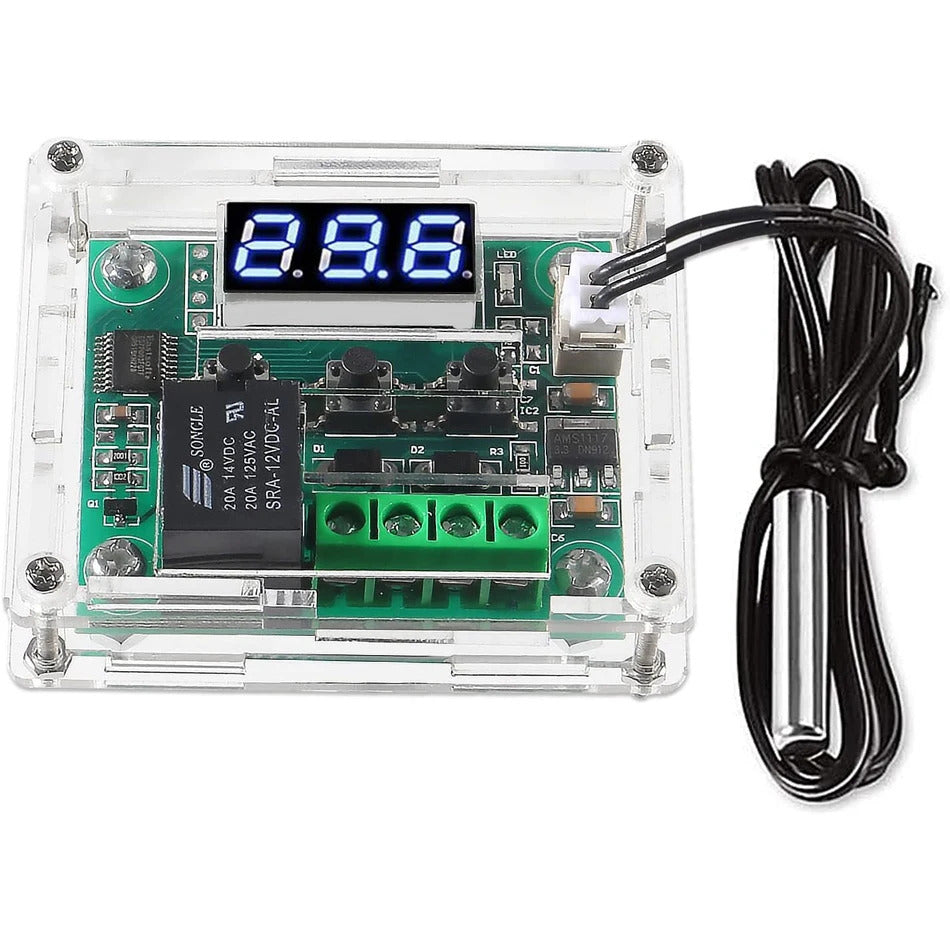

TEMPERATURE CONTROLLER WITH CASE FOR PC DIY XH W1209

• Temperature Controller Module :This Temperature Controller Module with Case is a top-notch solution for your computer's temperature regulation needs. It's designed to provide accurate and reliable temperature control, ensuring optimal performance at all times.

• LED Display :Equipped with an XH W1209 LED display, this digital thermostat module provides clear and visible temperature readings, making it easy to monitor and adjust the temperature.

• Waterproof Design :The module features a waterproof NTC sample-50 ~ 110? design, ensuring its ability to withstand moisture and humidity, making it ideal for use in various environments.

• Integrated Circuits :As an integrated circuit, this temperature controller module offers efficient and effective temperature regulation, making it a must-have for any computer setup.

• Easy Installation :With its compact size and user-friendly design, this temperature controller module can be easily installed, saving you time and effort.

• Durable Material :Made from high-quality materials, this temperature controller module is designed to withstand regular use, ensuring long-lasting performance and reliability.

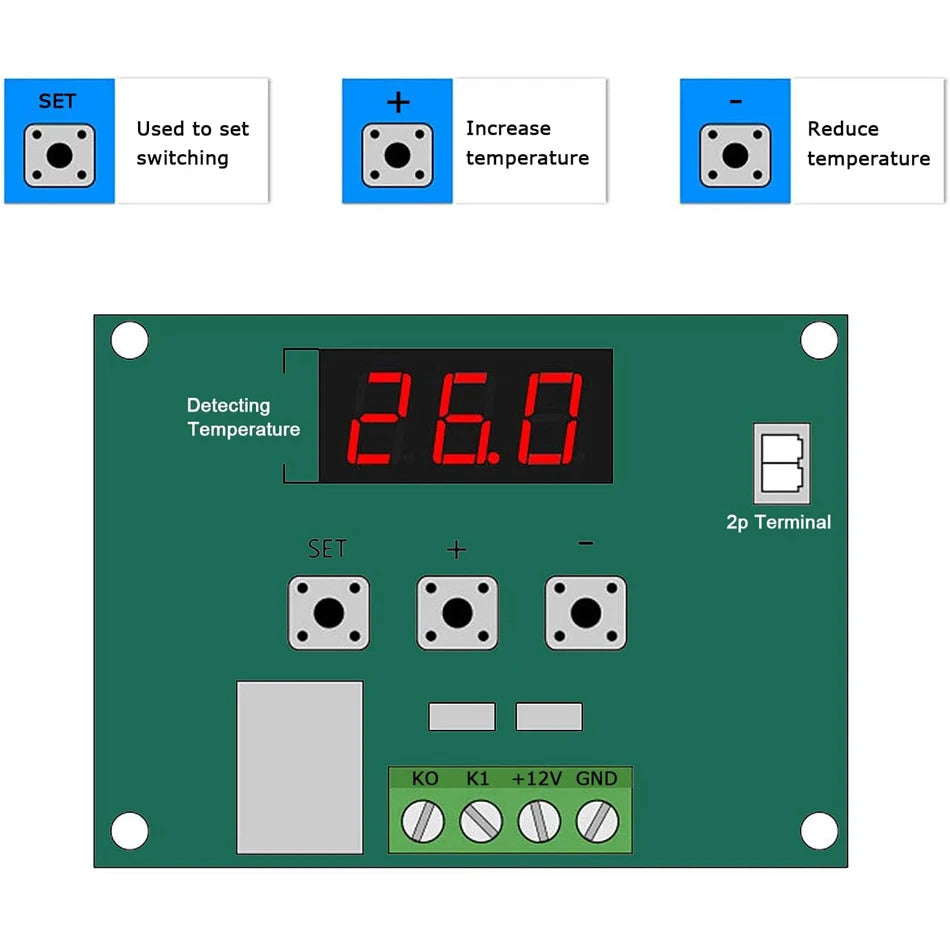

The W1209 is an incredibly low cost yet highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an on board LED.

Features:

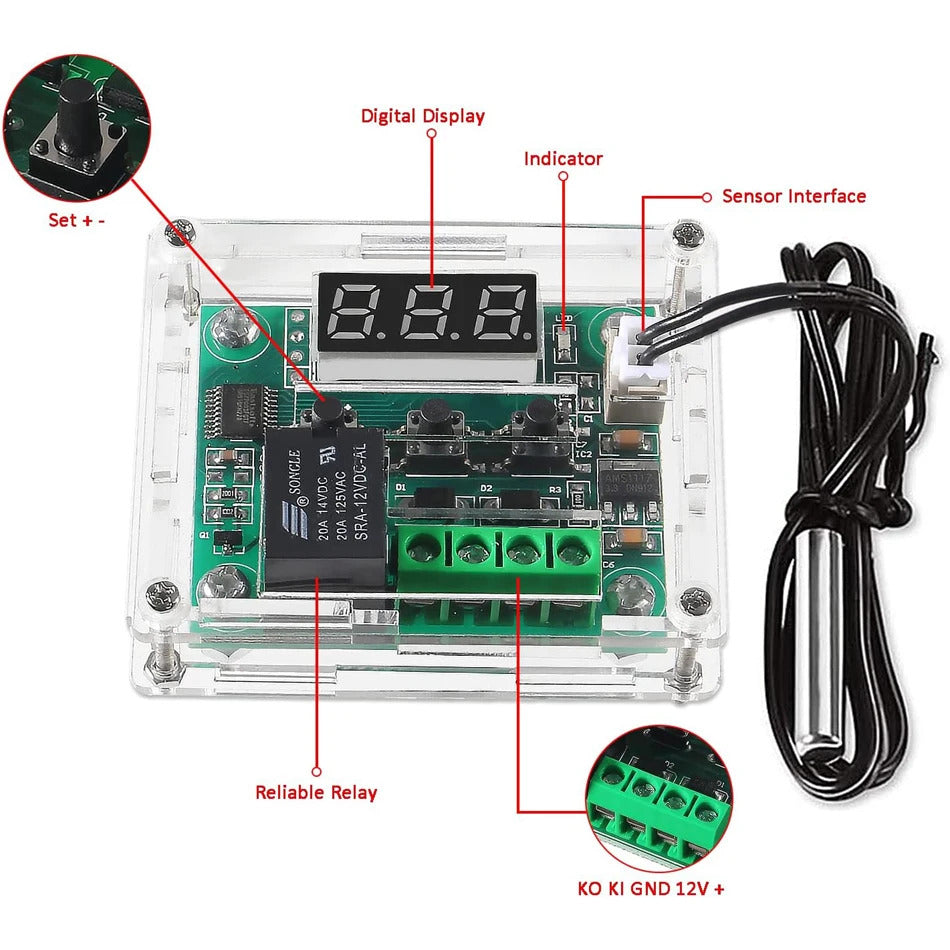

• ✹✹ The W1209 thermostat module controller has a sensor input, keys, LED display, and a relay. It can be reprogrammed for control, timing, or counting.

• ✹✹ Temperature Measurement Range: -50~110℃. Control Precision: 0.1 celsius.Input Power (DC): 12V; Measuring Inputs: NTC (10K 0.5%) ; Waterproof Sensor: 0.5M; Output: 1 Channel Relay Output, Capacity: 10A; Power Consumption: Static Current: 35mA; Current: 65mA.

• ✹✹ Electronic digital thermostat with a 3-digit LED display, extremely bright. Operation both in heating and cooling to easily control equipment and devices.

• ✹✹ The output is electronically controlled by a microprocessor, to guarantee the utmost precision of intervention and an excellent resolution of reading temperature.

• ✹✹ The NTC probe is waterproof and allows to control the temperature even of fluids, allowing the controlled heated or cooling【Note: The wood laminate case is the clear plastic case. You need to tear the wood outside layer off carefully, the outside layer is very thin. (It can protect the inside to prevent scratches.) And you need to assemble and install the case by yourself, it comes disassembled with tiny bolts and nuts.)】.

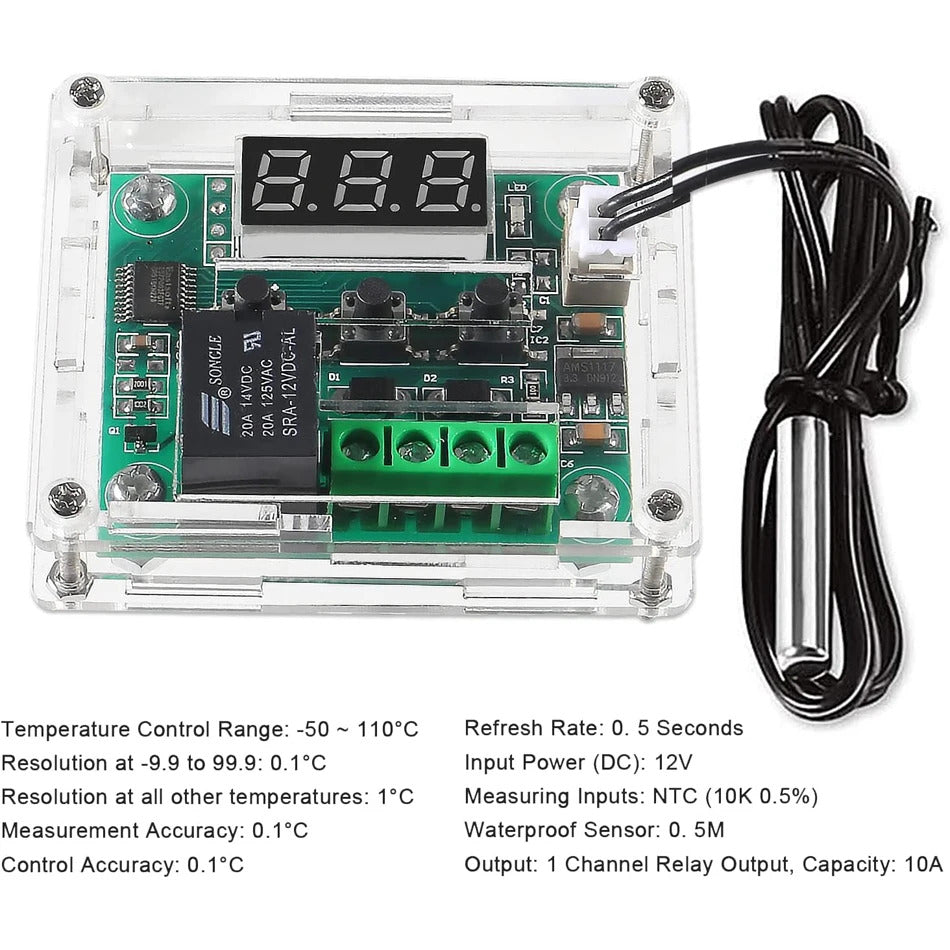

Specifications

Temperature Control Range: -50 ~ 110?

Resolution at -9.9 to 99.9: 0.1℃

Resolution at all other temperatures: 1℃

Measurement Accuracy: 0.1℃

Control Accuracy: 0.1℃

Refresh Rate: 0.5 Seconds

Input Power (DC): 12V

Measuring Inputs: NTC (10K 0.5%)

Waterproof Sensor: 0.5M

Output: 1 Channel Relay Output, Capacity: 10A

Power Consumption:

Static Current: <=35mA

Current: <=65mA

Environmental Requirements:

Temperature: -10 ~ 60℃

Humidity: 20-85%

Dimensions:

48mm x 40mm x 14mm

P0 :Cooling / Heating; Range: C/H; Default: C

P1 :Hysteresis Setting; Range:0.1-15; Default: 2

P2 :Highest Setting Limit; Range:110; Default: 110

P3: Lowest setting Limit; Range:-50; Default: -50

P4 :Temperature Correction; Range:-7~7℃; Default: 0℃

P5: Delay Start Time; Range:0-10 Minute; Default: 0

P6: High Temperature Alarm; Range:0-110; Default: Off

When the Thermostat is power off, long press "- or +", you can restore the factory settings

Package included:

1 x w1209 temperature controller module (blue + red)/Blue + Blue/Red + red send randomly

1 x Hard Plastic Case
