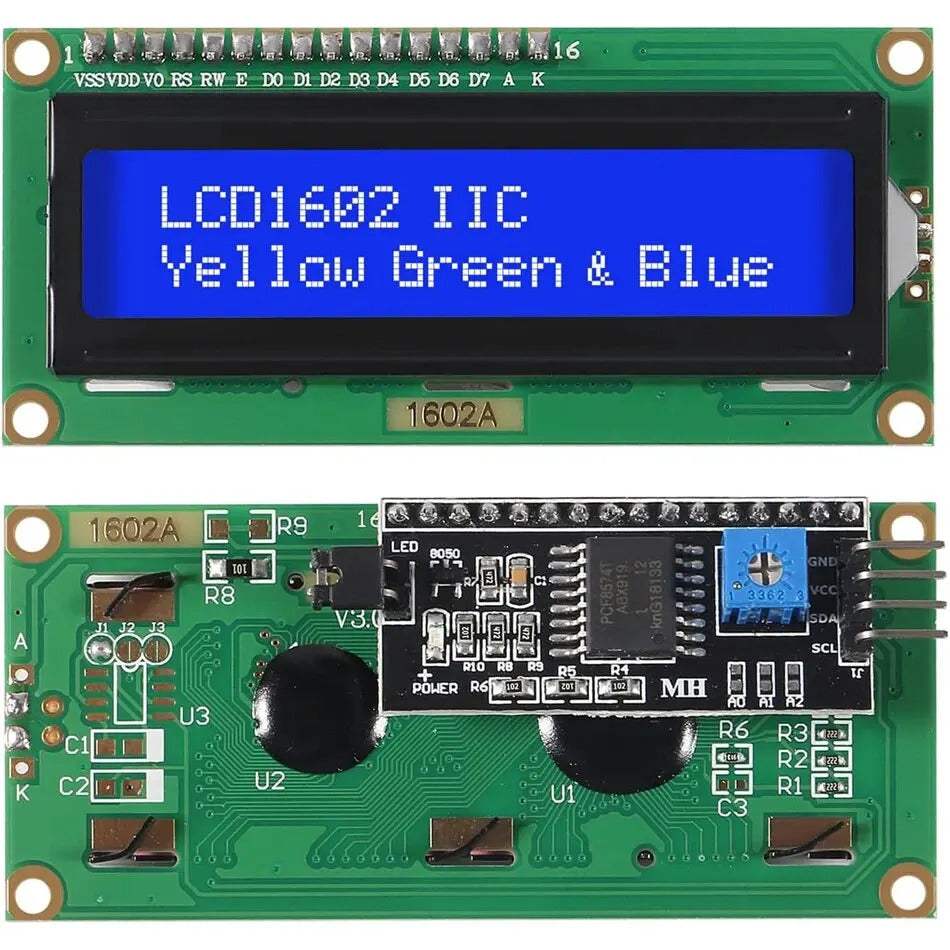

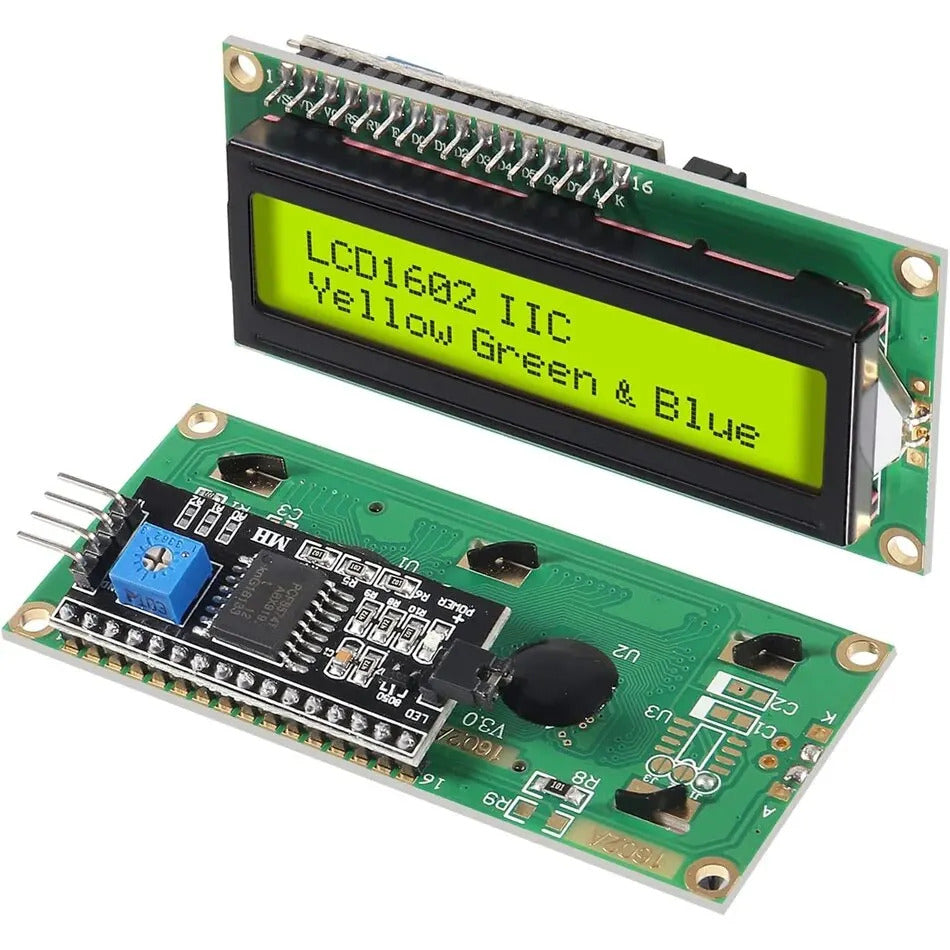

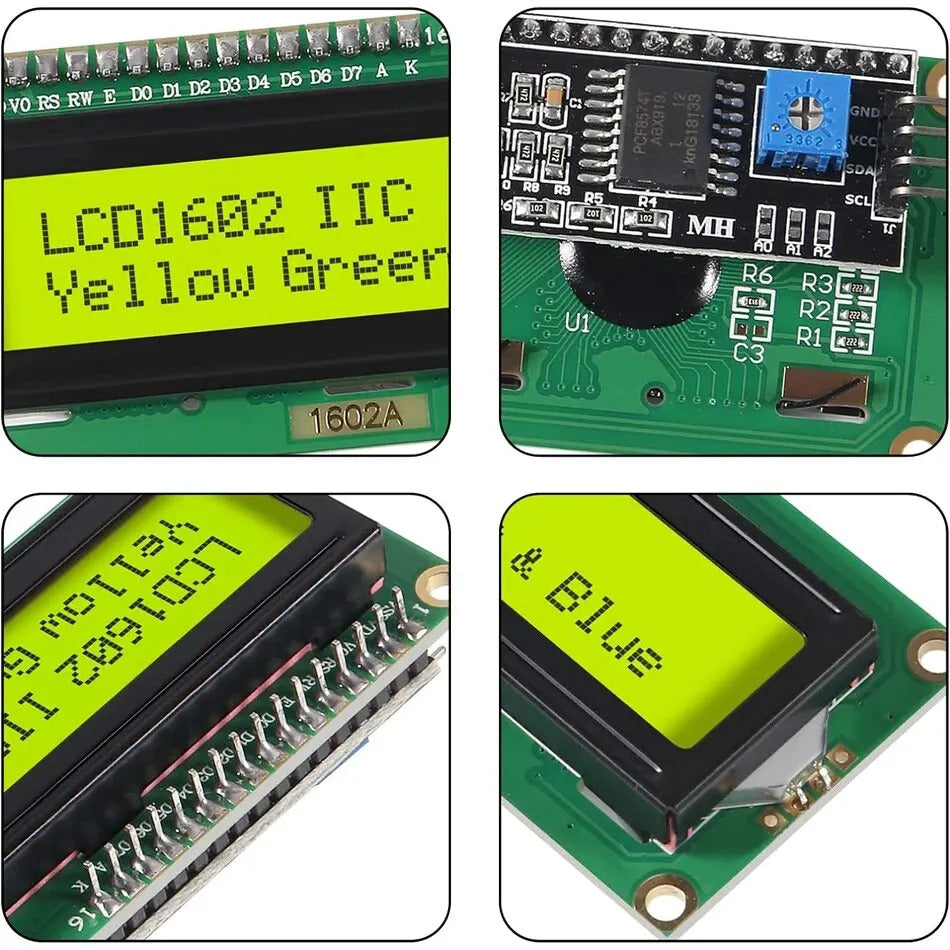

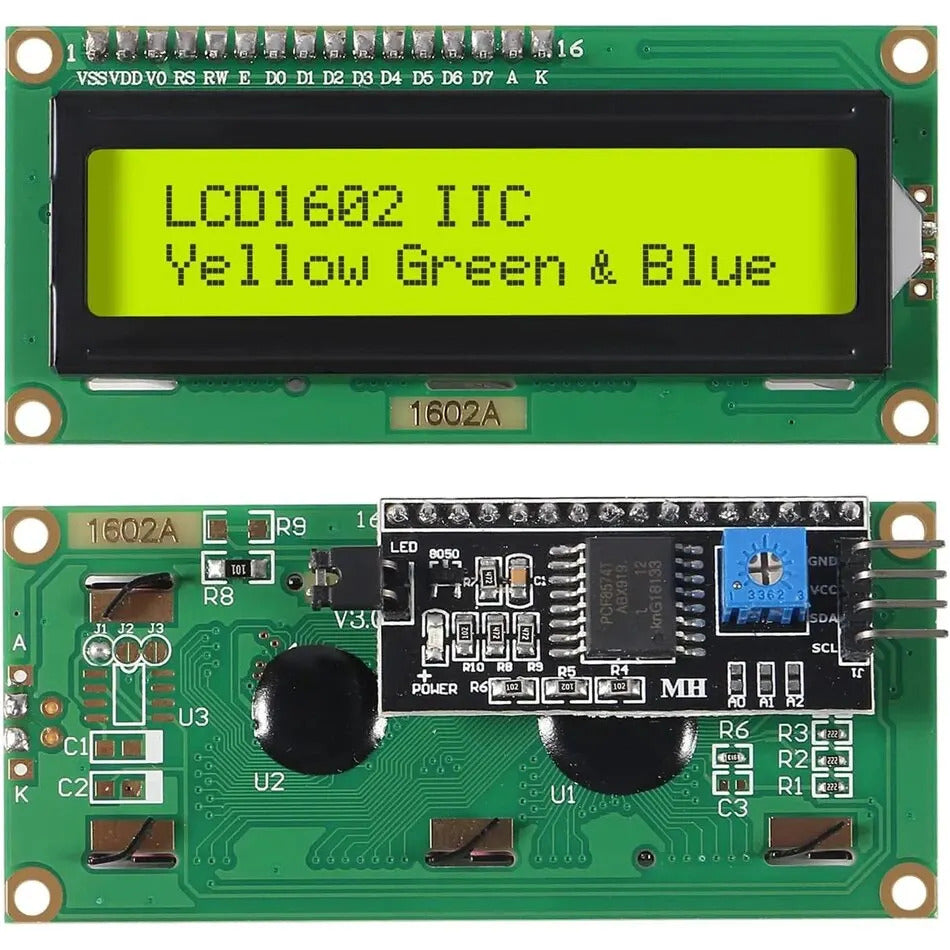

LCD1602 LCD MODULE GREEN & BLUE SCREEN

• Components: blue LCD display with i2c serial interface backpack; LCD screen can display 2-lines x 16-characters; The i2c LCD adapter built-in industry standard equivalent LCD controller

• Default Address: 0 x 27 for PCF8574T chip; 0 x 3F for PCF8574AT chip; Please kindly check the chip of the i2c interface; ( Please remember to download the I2C library on GitHub before uploading the code to the control board)

• Compatibility: 1602 icd display with I2C serial interface is compatible with for Arduino and Raspberry pi; Working voltage: 5V; To come with a potentiometer, which is applied to adjust backlight and contrast; How to wire: GND—GND; VCC—VCC; SDA—A4; SCL—A5

• Application: LCD module is applied to display letters, characters, numbers, real time clock and temperature

• Display function: 1602 icd display with I2C serial interface can be applied to display real time clock, temperature, humidity and so on; (A potentiometer is also necessary to adjust the contrast; Working Voltage: Only 5V )

Specification:

Display: 2-lines x 16-characters

Four Pin Definition: GND, VCC, SDA, SCL

Default I2C bus address: 0 x 3F for PCF8574AT chip, 0 x 27 for PCF8574T chip

Working voltage: 5V

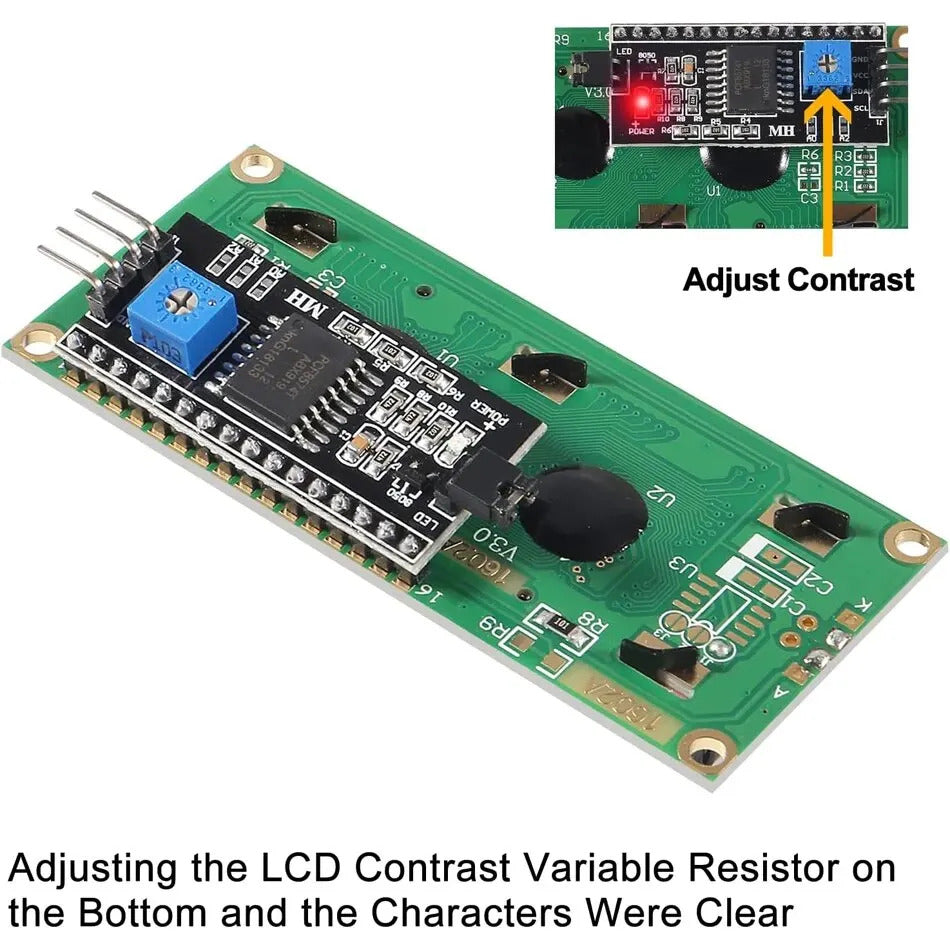

Adjust Contrast: Potentiometer

Adjust Backlight: Jumper

Package included:

1 x LCD display blue/green

1 x I2 C serial interface
