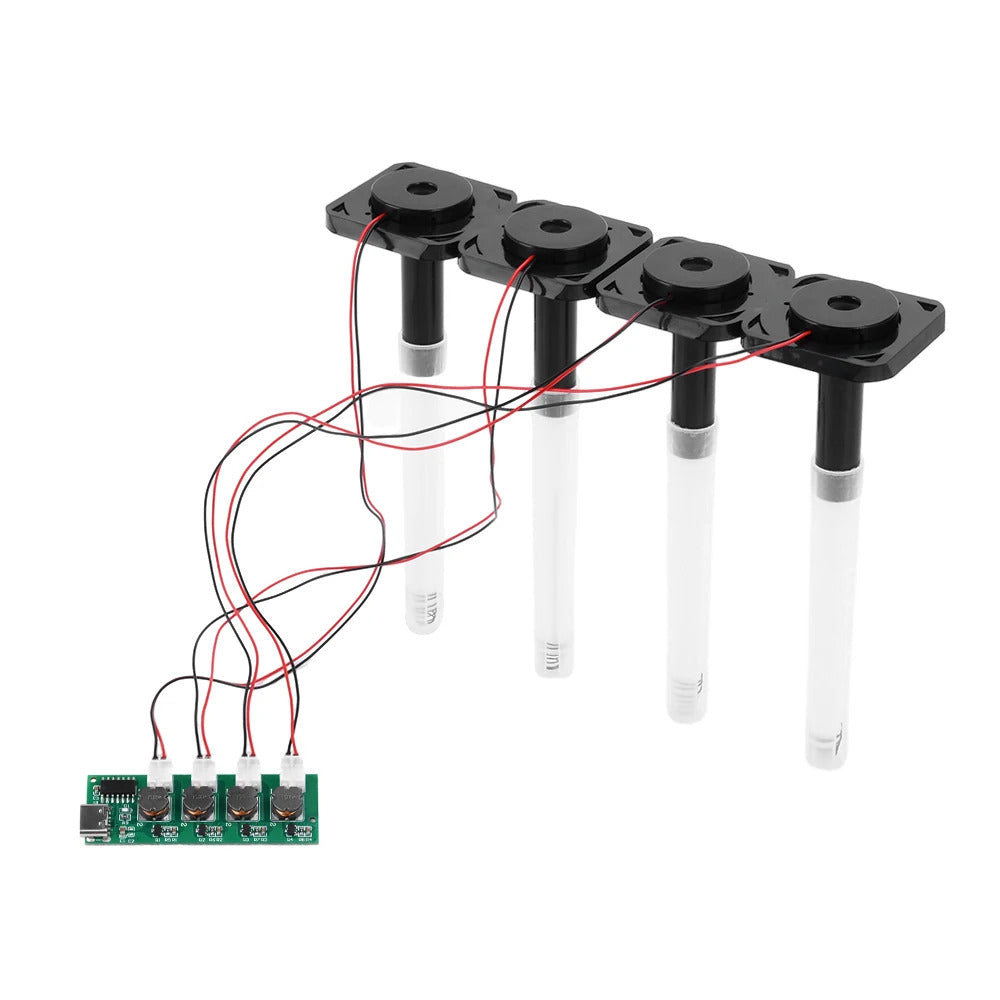

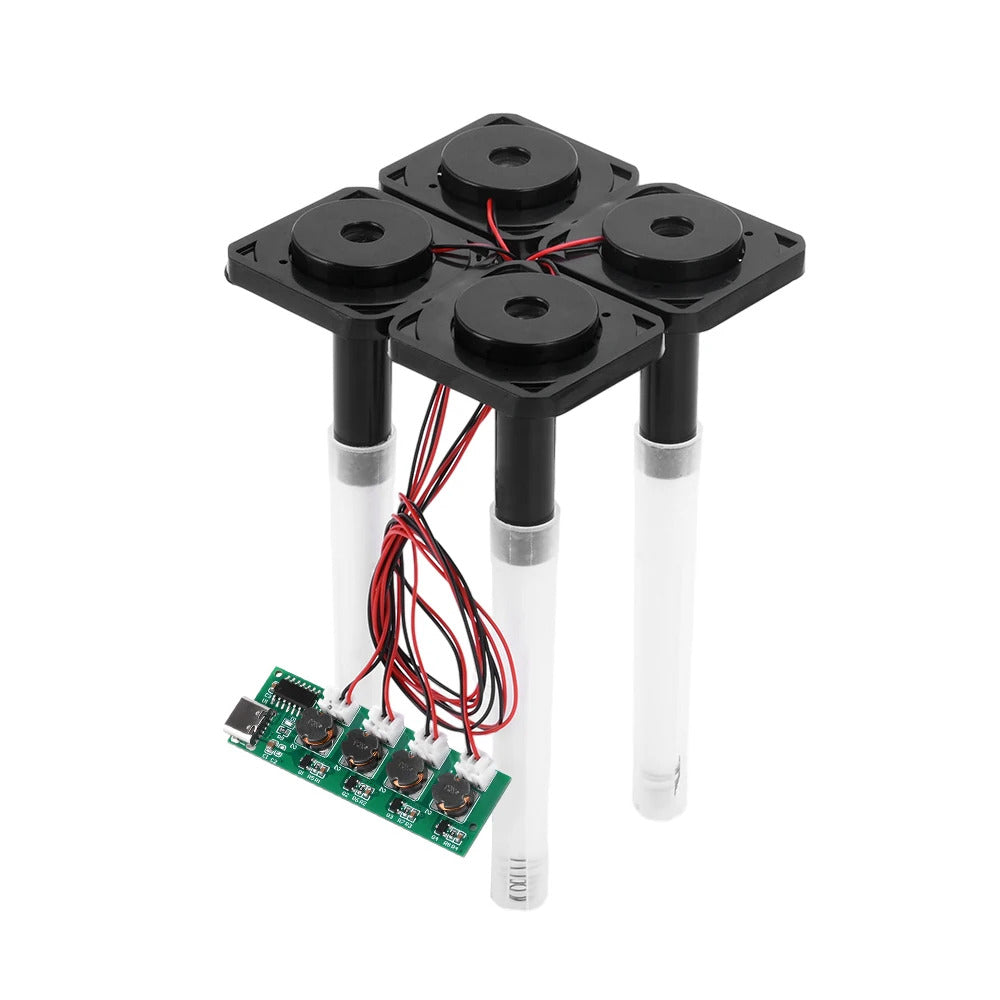

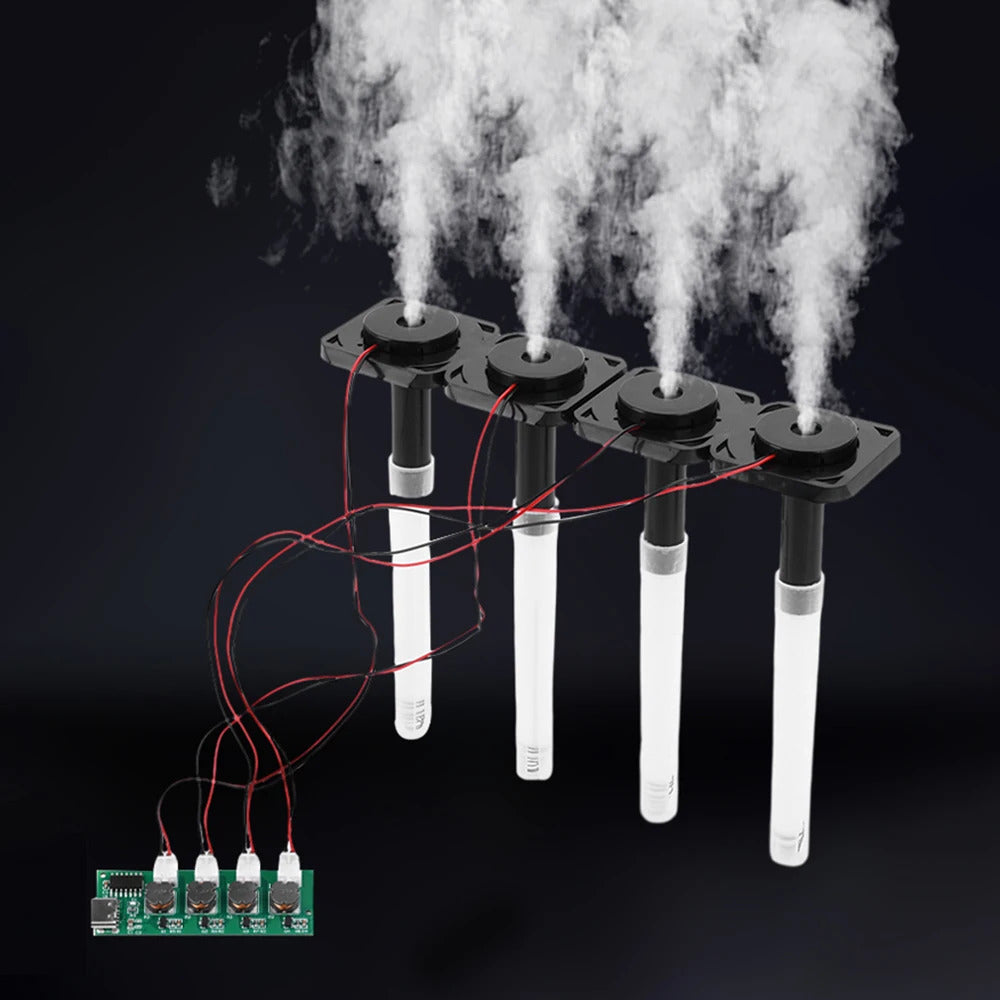

FOUR SPRAY HUMIDIFIER MODULE DC5V UNSWITCHED

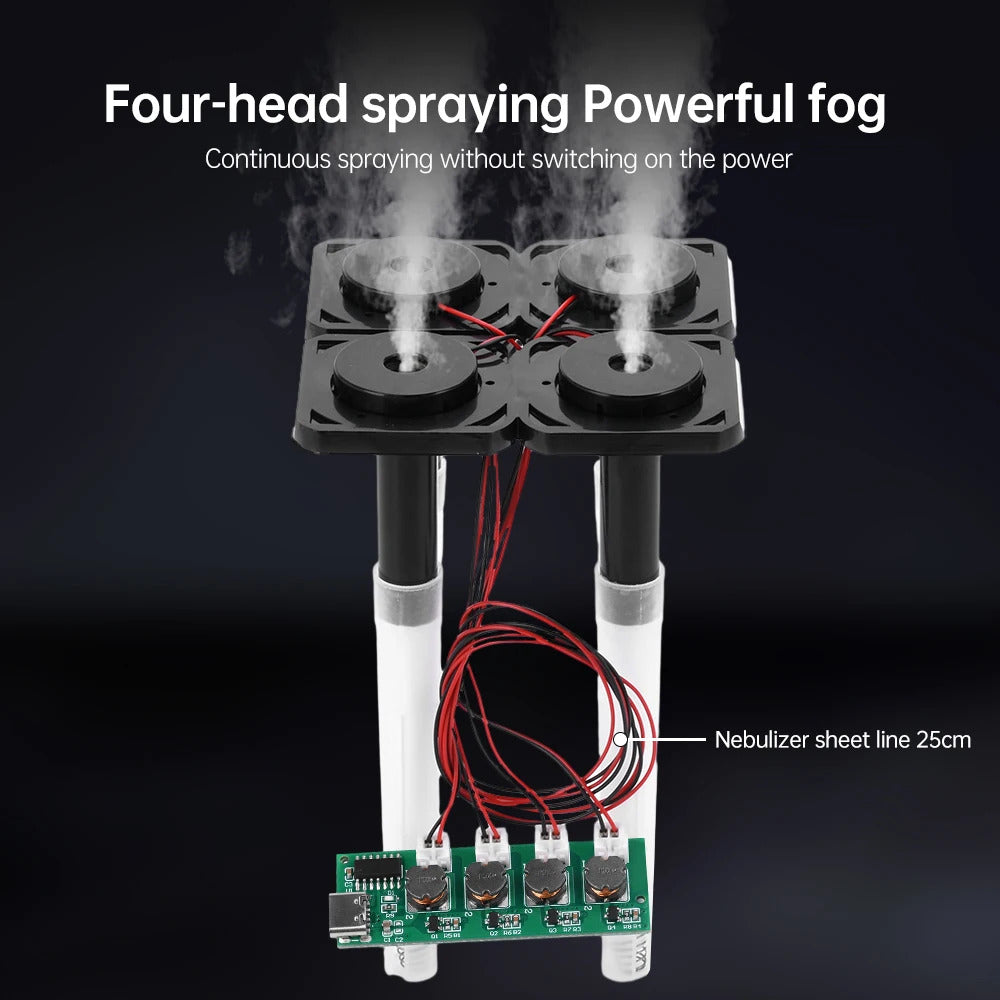

Convenient application, four head spray, strong fog volume, continuous spray without switch power on.

Upgrade the TYPE-C interface, with strong versatility, high fog output, stable performance, simple use, and easy to get started with.

High efficiency and stability, spray when electrified, long service life.

Wide range of applications: DIY self-made, plant moisturizing, product application, module set ready to use, each set of modules with brackets and cotton swabs, easy to assemble.

Parameter:

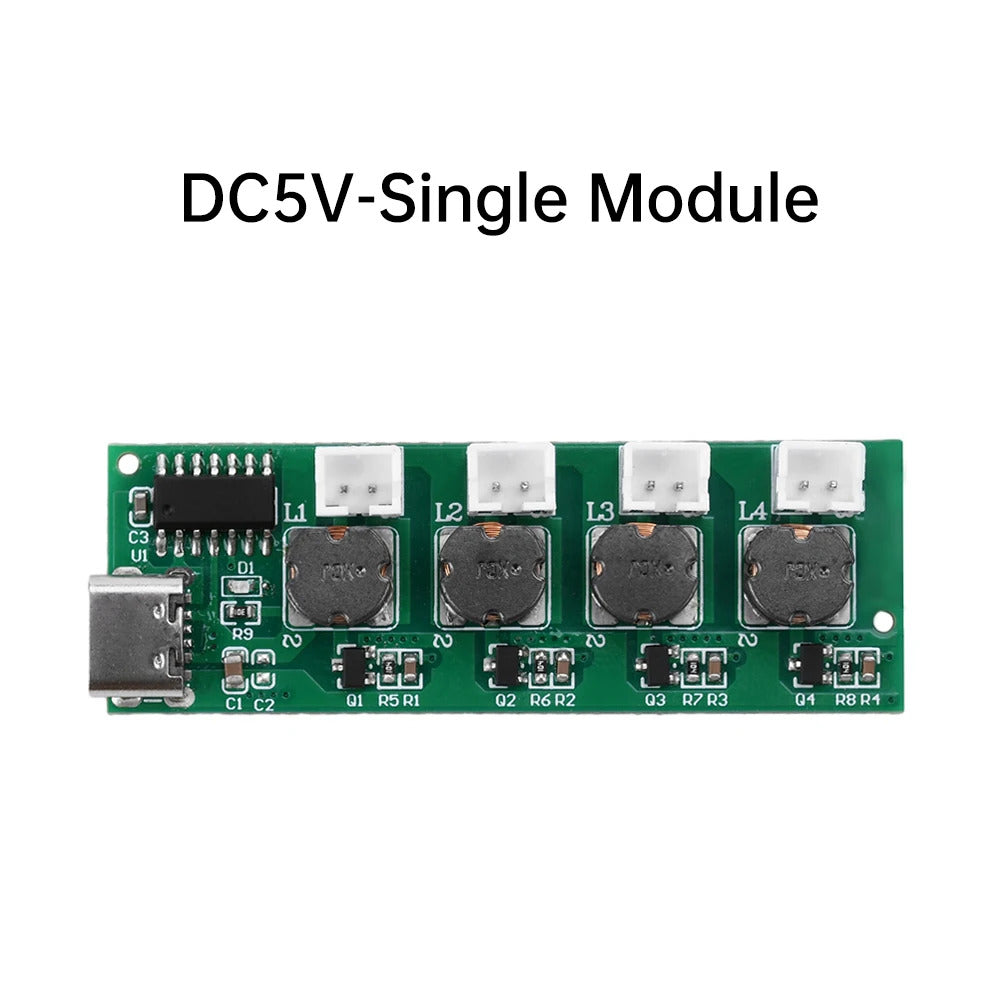

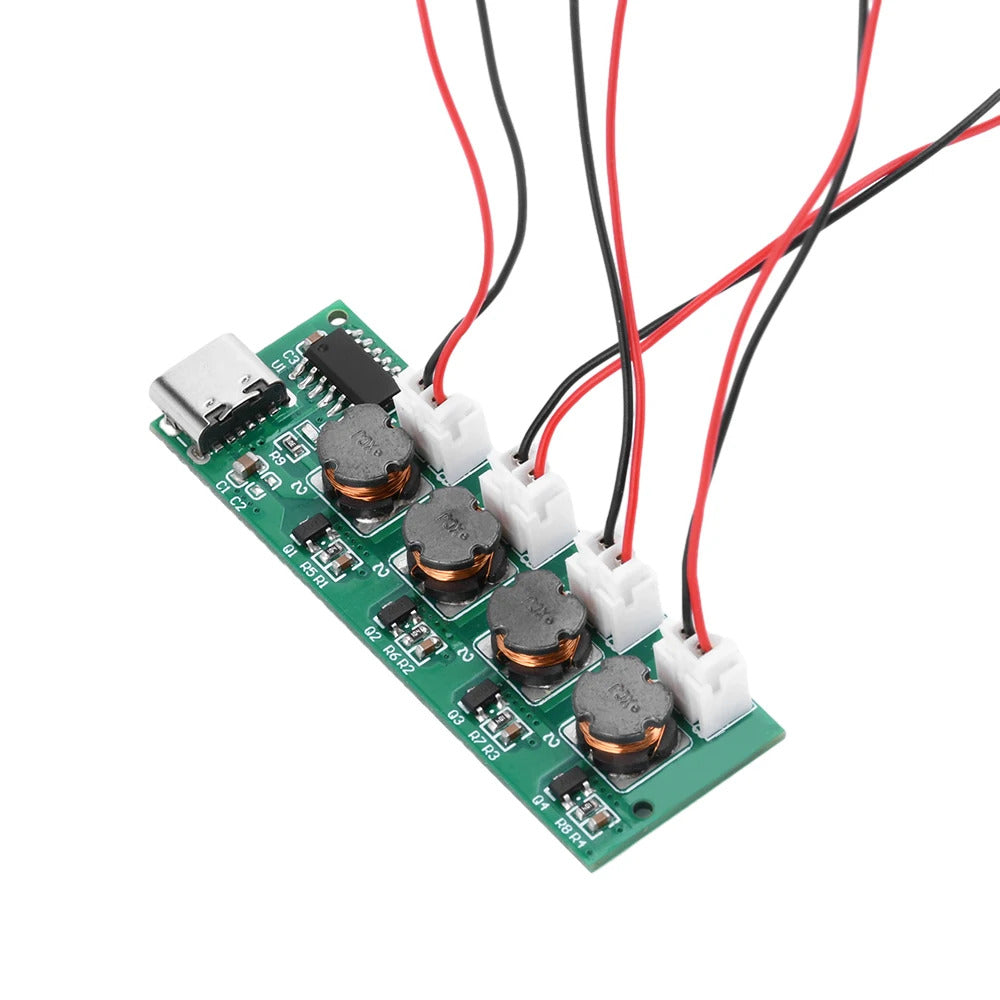

Name: Unswitched atomization drive board
Material: 1.2MM FR-4
Power plug: TYPE-C interface
Rated voltage: DC5V (power supply)
Rated current: 300MA (minimum 2A)
Power: 2.5-3W
Atomization frequency: 108KHZ ± 2KHZ

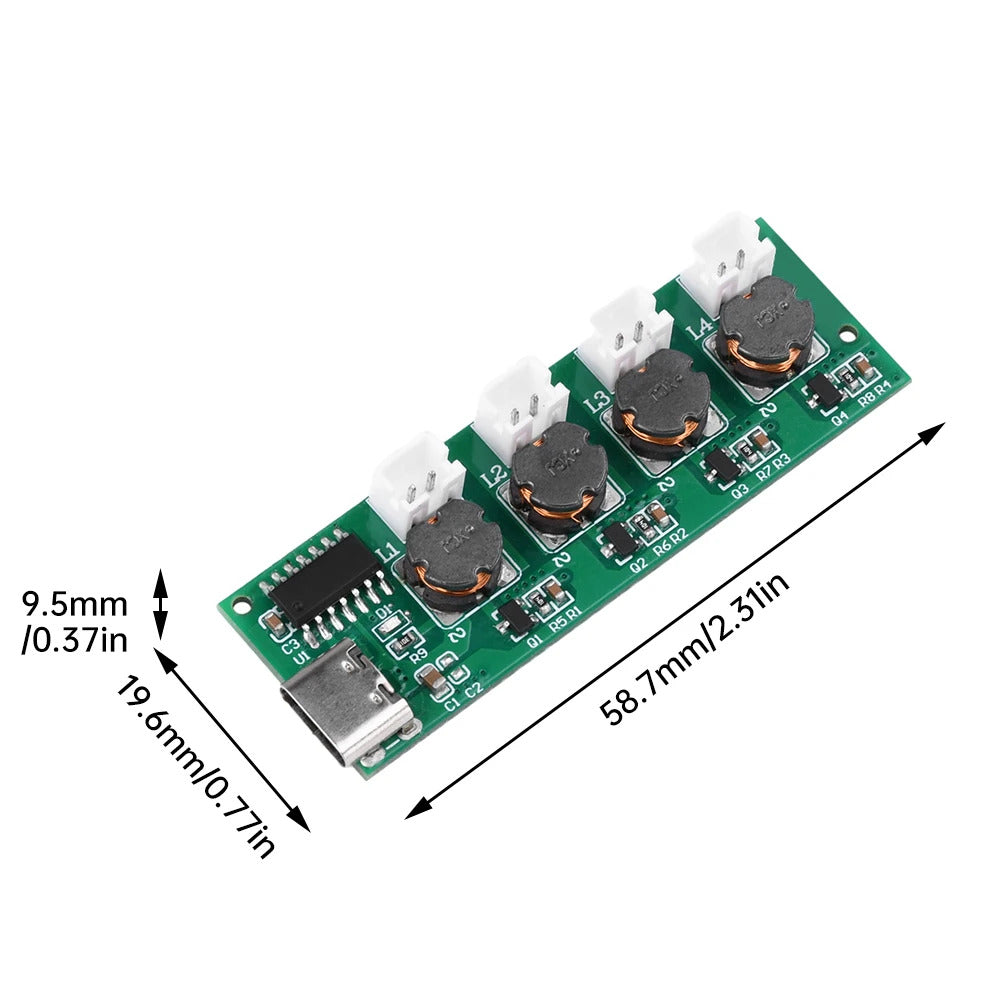

Module: 57 x 19MM
Cotton swab: 7 x 121MM
Nebulizer parameters:
Drive voltage: 5V
Resonant frequency: 108-110KHZ ± 5
Rated power: 2W
Punch count: 1100
Aperture: 4-5UM
Outer diameter of silicone sleeve: 20MM
Rubber ring thickness: 3MM
Steel plate diameter: 16MM
Line length: 25CM
Wire terminal: PH2.0

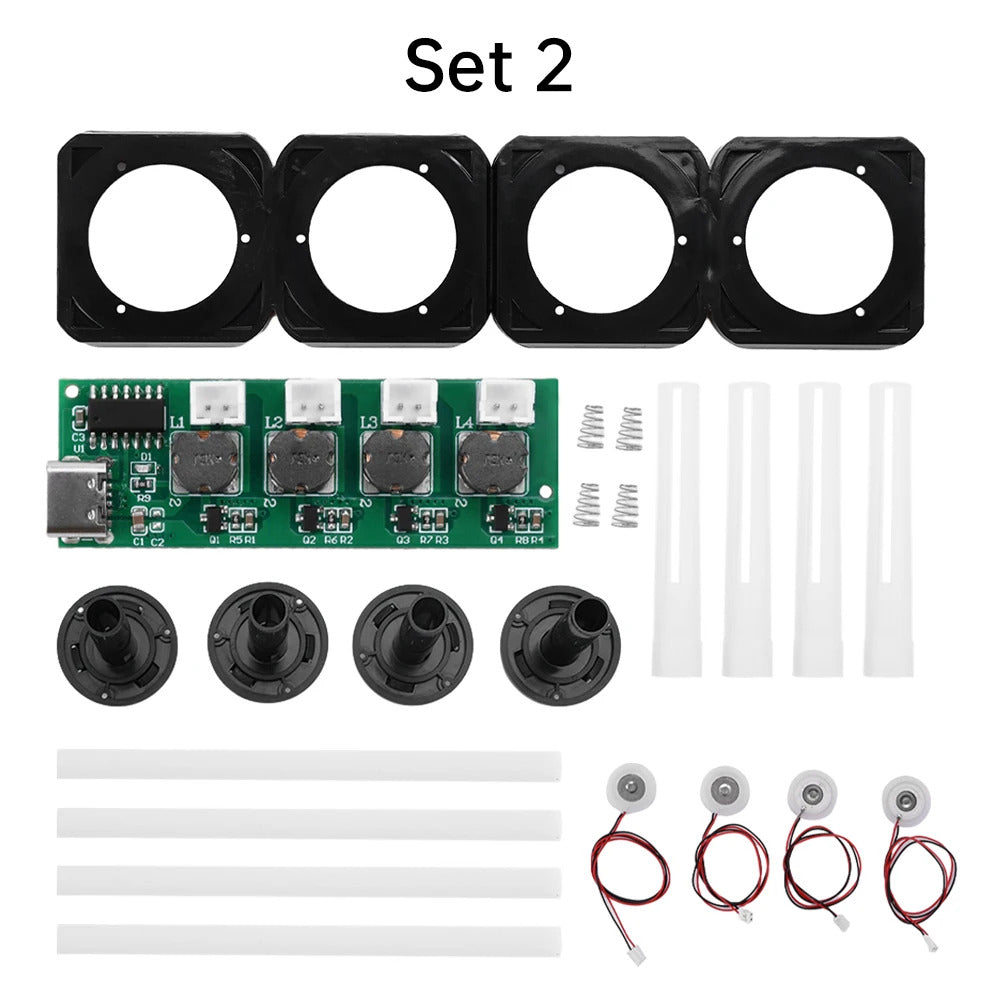

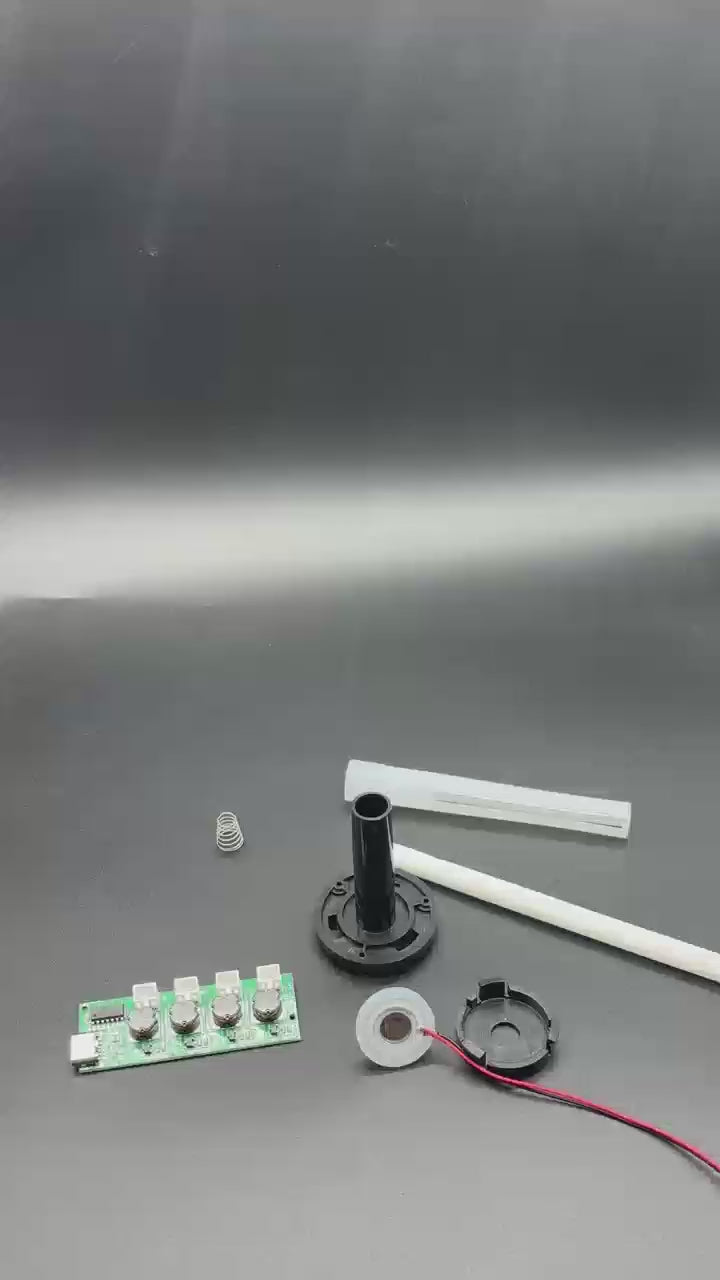

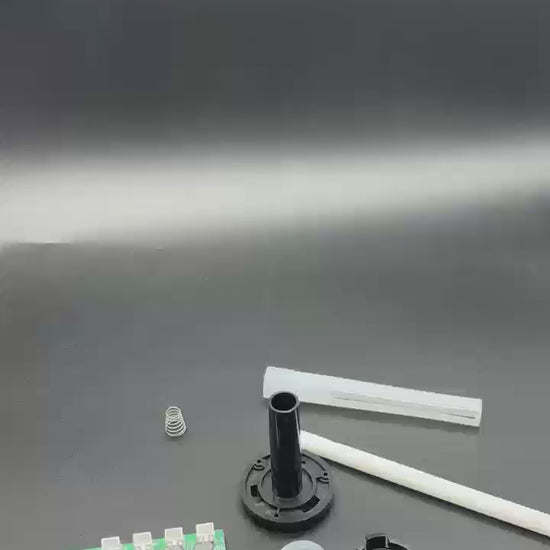

Package Includes
Module x 1
Fixed bracket x 1
Transparent cotton stick holder x 4
Support seat x 4
Spring x 4
Cotton swab x 4
Nebulizer x 4
