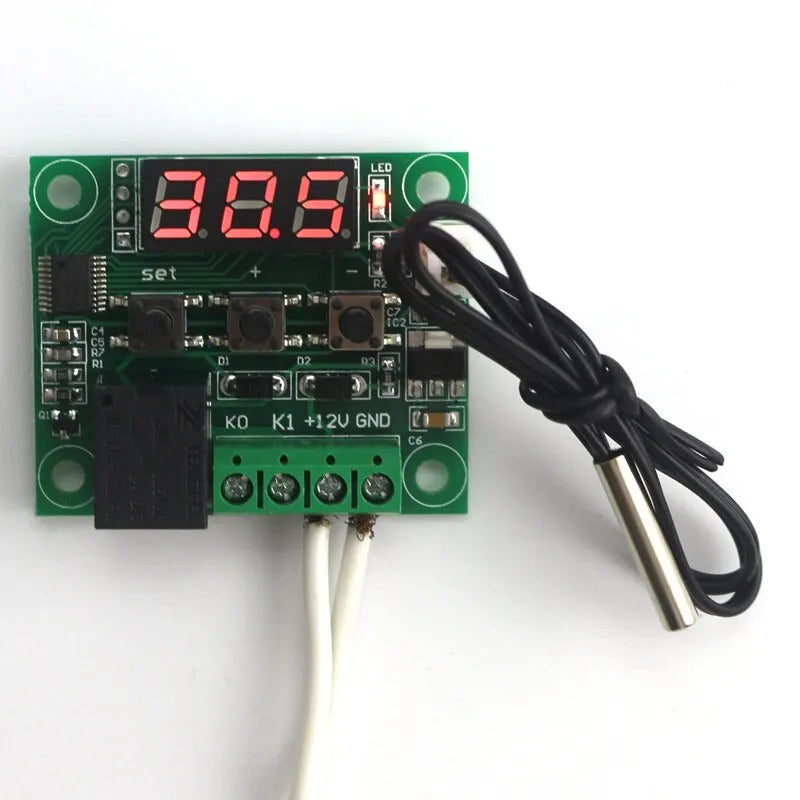

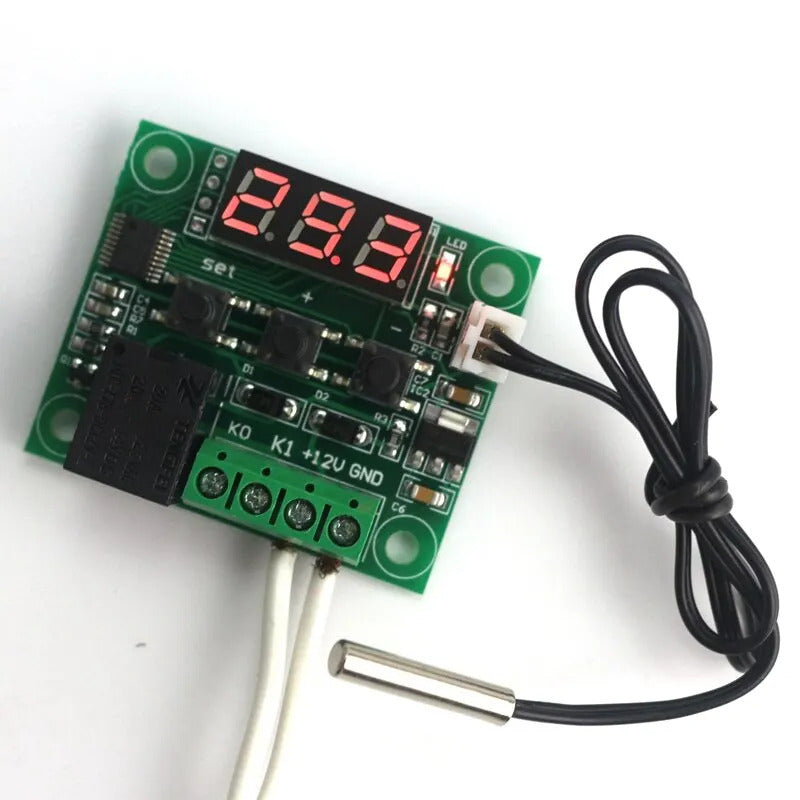

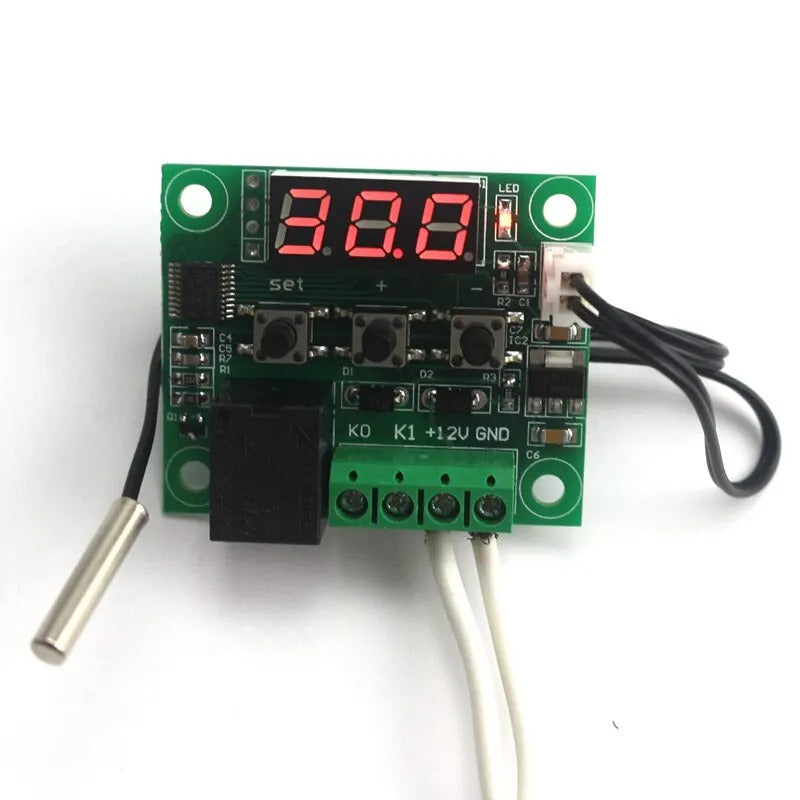

DIGITAL TEMPERATURE CONTROLLER W1209 DC 12V

• Digital Thermostat :The W1209 DC 12V Heat Cool Digital Thermostat is a high-tech device that accurately controls the temperature of your indoor space.

• Miniature Design :With a display size of 1.9 inches or under, this thermostat is small enough to fit in your pocket, making it easy to carry around and install anywhere.

• Temperature Control :This temperature controller allows you to set the temperature of your indoor space with precision, ensuring that you're always comfortable.

• CE Certification :The W1209 DC 12V Heat Cool Digital Thermostat is certified by CE, ensuring that it meets the highest safety and quality standards.

Parameters:

    Control range: -45~ 110

    Input Power: DC 12V

    Resolution: -9.9-99.9 0.1 , other temperature ranges 1

    Measuring inputs: NTC (10K 0.5%) Waterproof sensor

    Length of the cable with sensor : 32cm, the length of sensor: 2cm

    Measurement accuracy: 0.1

    Output range: 1 way 10A relay

    Control accuracy: 0.1

    Environmental requirements: -10-60 , humidity 20% -85%

    Hysteresis accuracy: 0.1

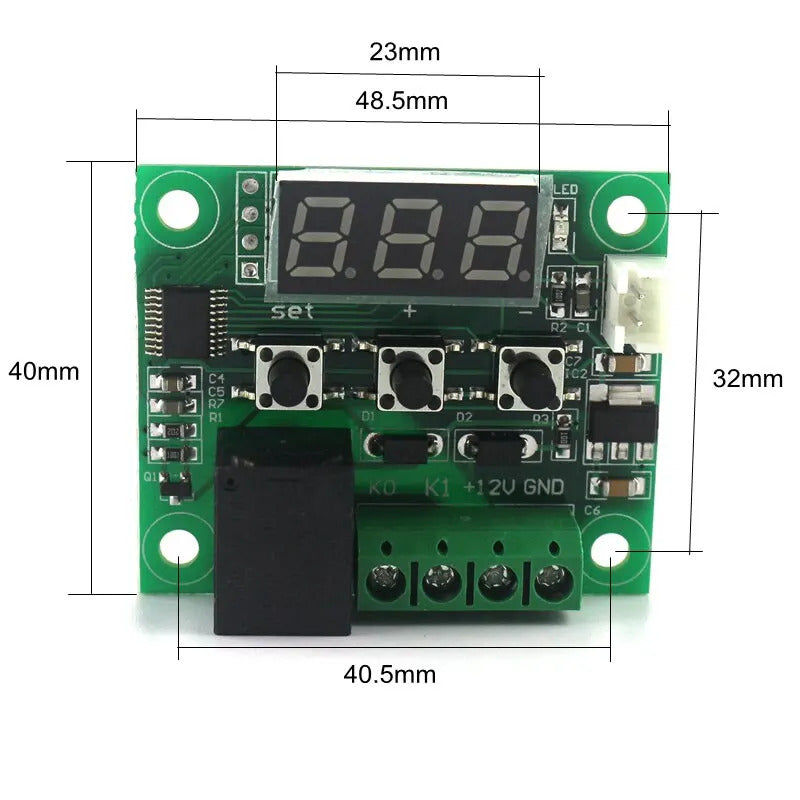

    Size: 48*40mm

    Refresh rate: 0.5S

    Power consumption: Static current: <= 35MA,attract current:<= 65MA
    Temperature protection :0-110

    Display Type: 0.28 " three digital display tube

How to use:

    Connect the power supply and the load, you can supply to the controller, Is displayed as a measured temperature, Press the SET button, the display flashes the temperature, Press + - to set the desired temperature, After setting press SET to confirm return, The controller automatically performs the relay by setting off!

    Lights, LED status descriptions: Indicator: Off The relay is switched off, Always indicate the relay is closed.LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.

    Parameter Function: Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press SET or 10 seconds of no key activity confirmed their return to the controller

Off state, long press + - boot to restore the factory settings

Note:

    There is not any output voltage of the controller , it is like a switch , you need to connect a power supply to the load, then it can work.

Package Included:

    1 x Temperature Controller
