AC 50-220V 2000W 25A MOTOR SPEED CONTROLLER SCR

 • High Power Capacity :This Motor Speed Controller boasts a high power capacity of 2000W, ensuring efficient control and stabilization of motor speeds.

• Versatile Voltage Regulator :The product functions as a versatile voltage regulator, capable of regulating voltages from 50-220V, making it suitable for various applications.

• Reliable Relay Type :The relay type design ensures reliable performance and longevity, providing users with a trusted and dependable power control solution.

• LED Dimmers Control :Equipped with LED dimmers control, this device allows for easy and precise adjustment of motor speeds, enhancing user experience and optimizing efficiency.

• Compact and Lightweight :Its compact design and lightweight nature make it easy to install and integrate into various systems, saving space while delivering top-notch performance.

Voltage Regulator AC 50-220V 2000W SCR Electric Voltage Regulator Temperature/Motor Speed Controller Light dimmer for Electric Stoves/Water Heaters/Lamps/Speed Controller

Features:

• This item has new two-way large power silicon controlled rectifier and the current can be up to 25A, which is a good solution to over current of electric stove wire caused by low resistance during cooling

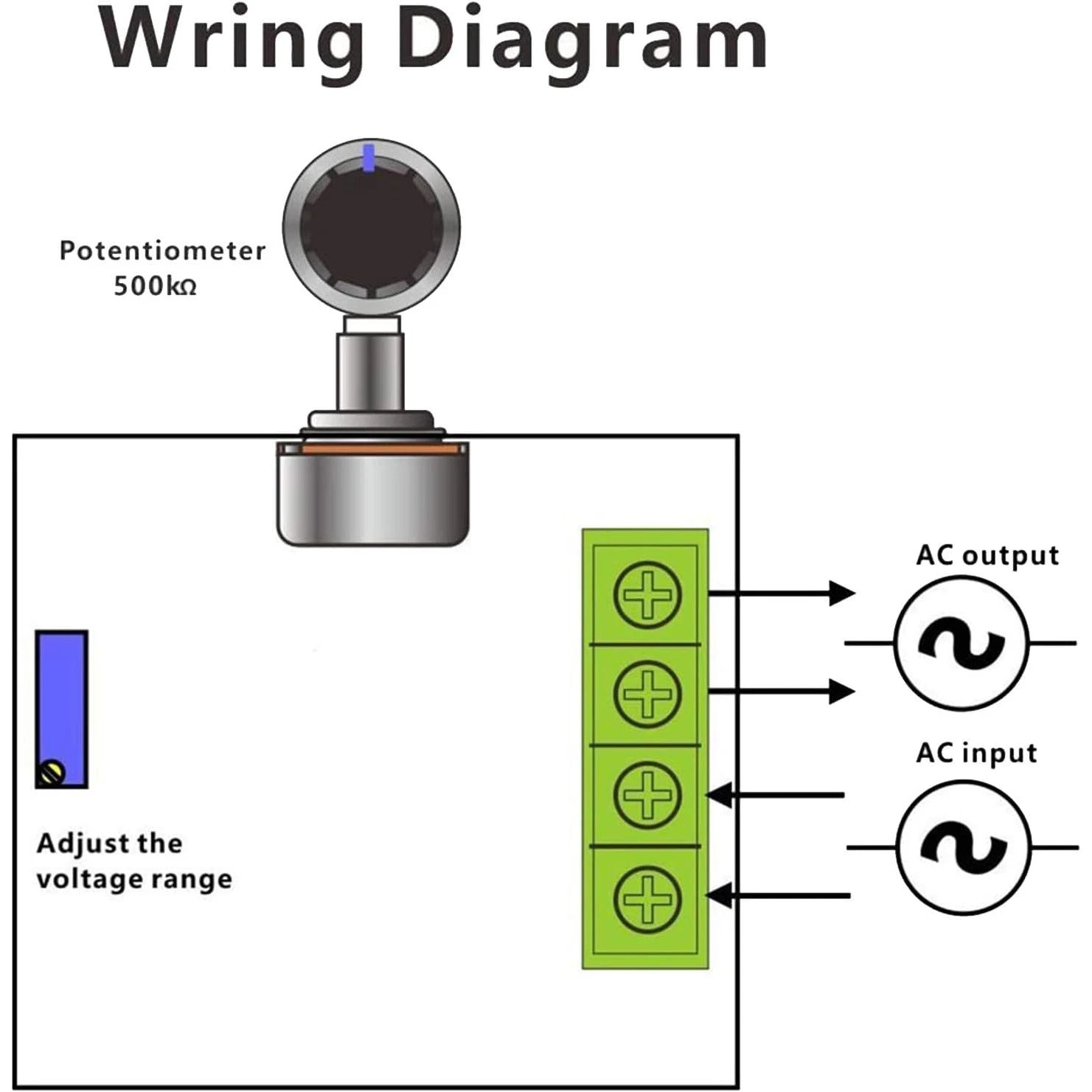

• Convenient to use, simply connect input terminals to either 220V wire(live wire or neutral wire) and output to load, then rotate knob to control voltage

• With a wide voltage regulating range, the output voltage can be easily adjusted from 50V to 220V

• Could be widely used as heat controller on electric stoves, water heaters, light dimmer on lamps, speed controller on small motors, or temperature controller on electric soldering iron, etc

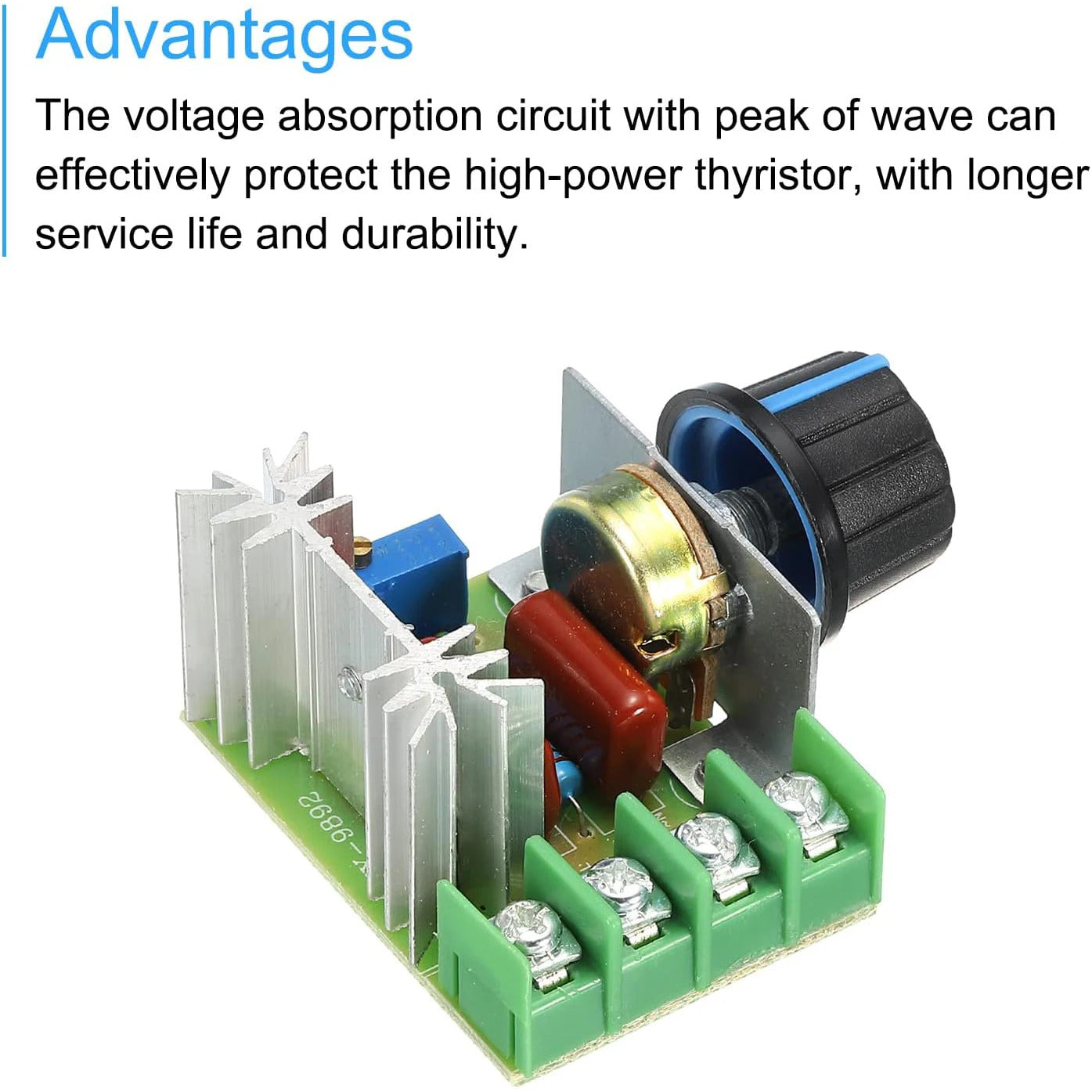

• This voltage regulator has voltage absorption circuit which can effectively protect large power silicon controlled rectifier and ensures a longer service life and durability

Specifications

Input Voltage: AC220V(NOT 110V)

Max Power: 2000W

Output Voltage: AC 50V to 220V

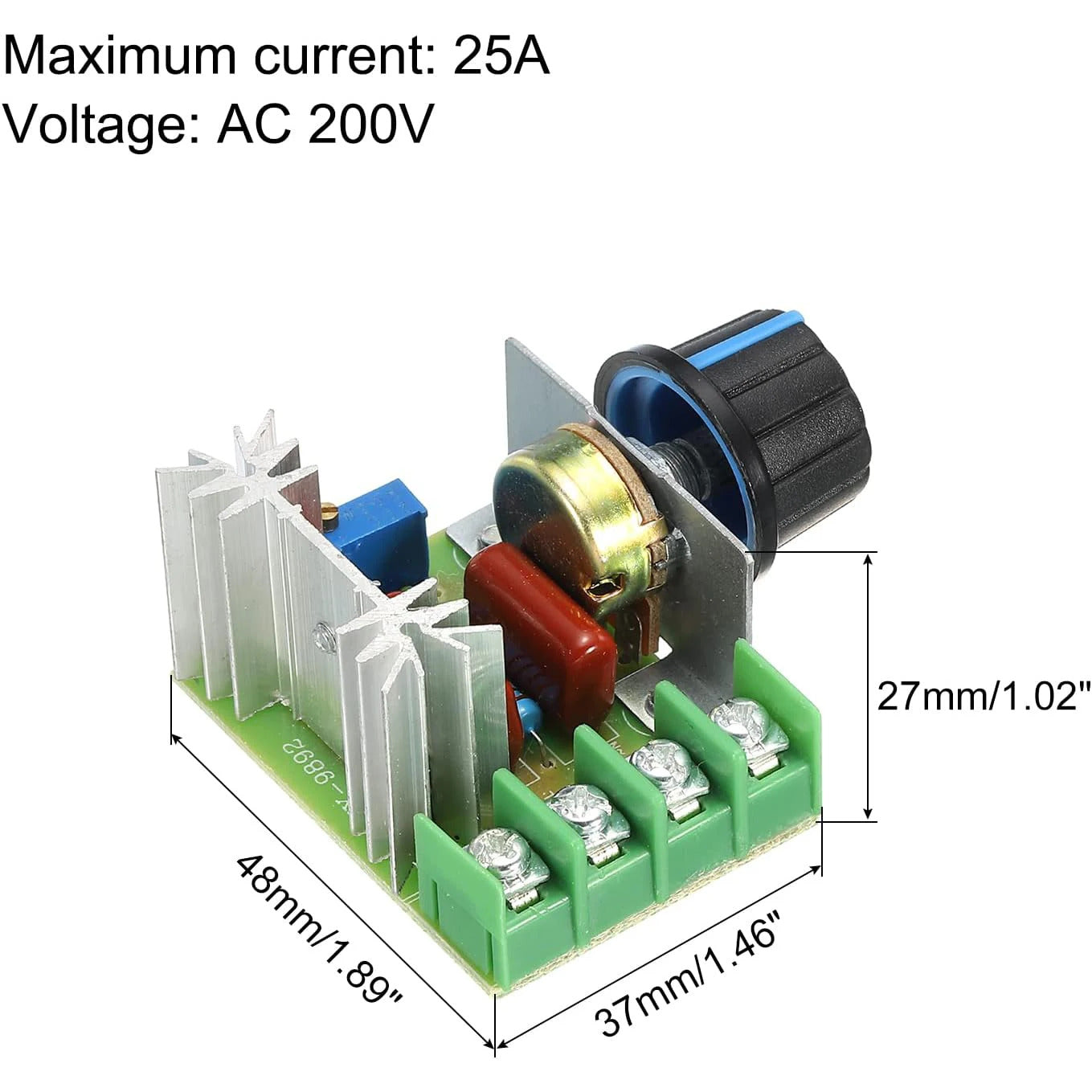

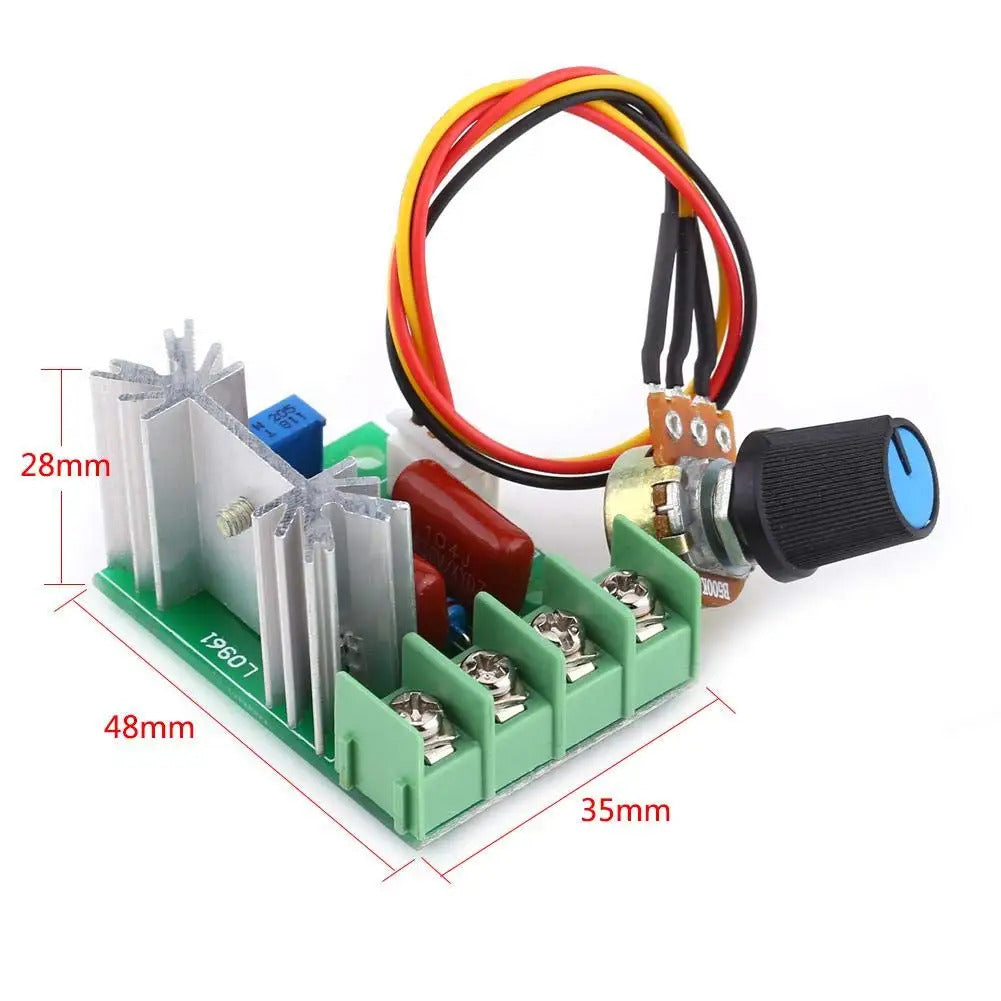

Size: 48x35x28mm/1.89x1.37x1.1

Package included:

1 x Voltage Regulator
