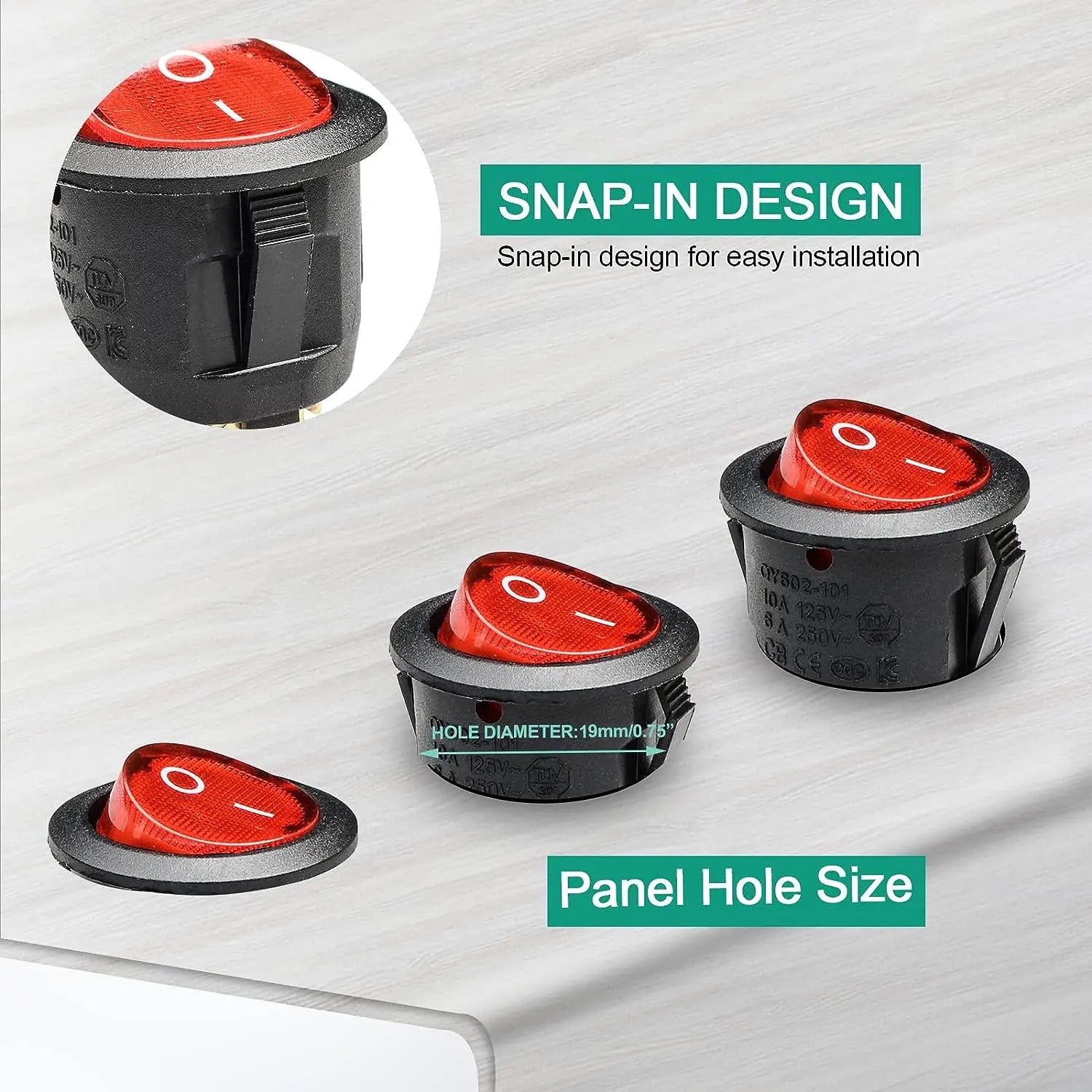

• 1.【Easy Installation Auto】Equipped with buckle, easy to install as long as you have a 13mm x 19mm hole.
• 2.【10000 Times ON-OFF Operating Life】Made of high quality polyamide eP(Nylon PA66) , this sturdy mini boat rocker switch is made for anti-corrosion, anti-acid and high resistant with brass terminals.

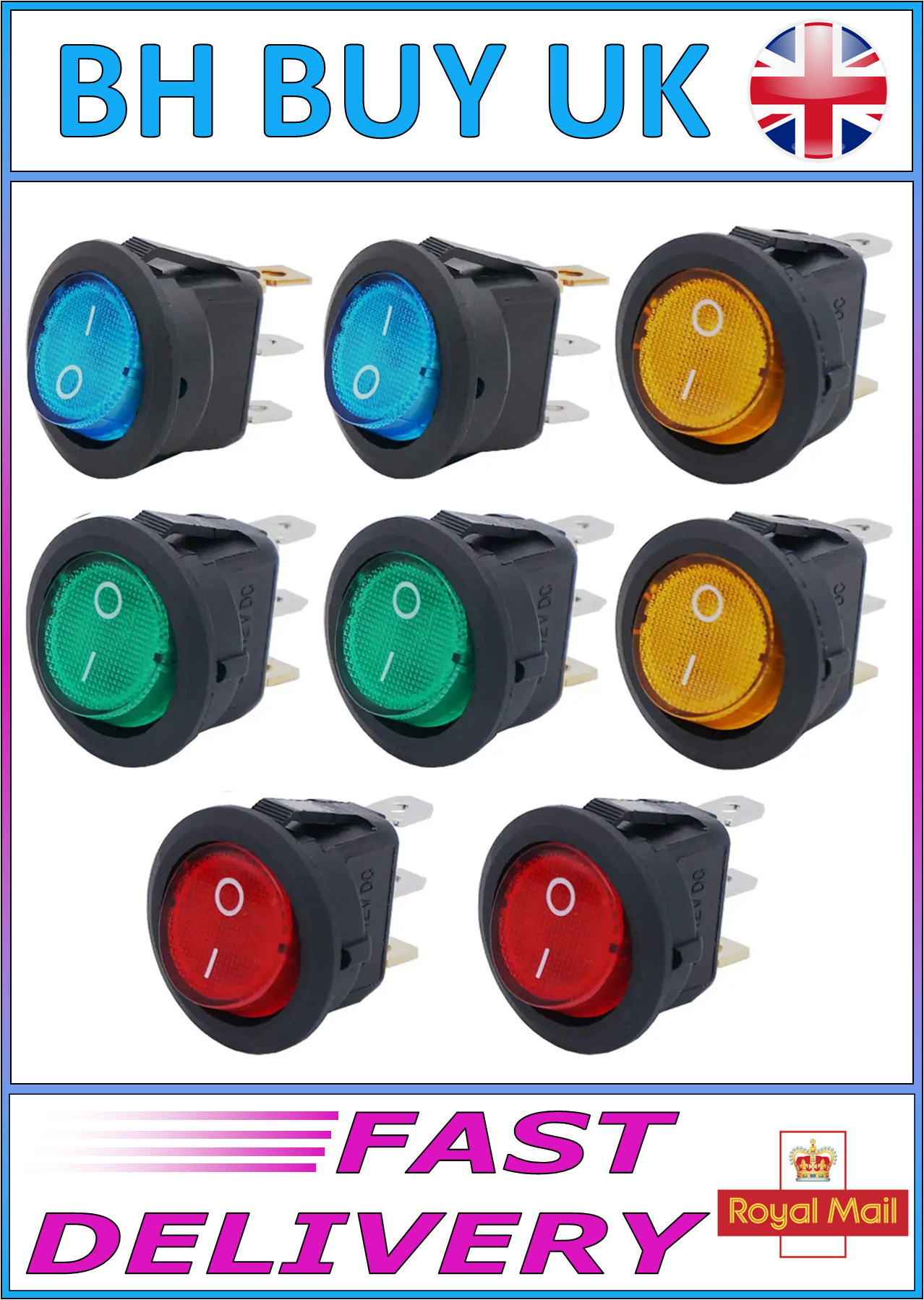

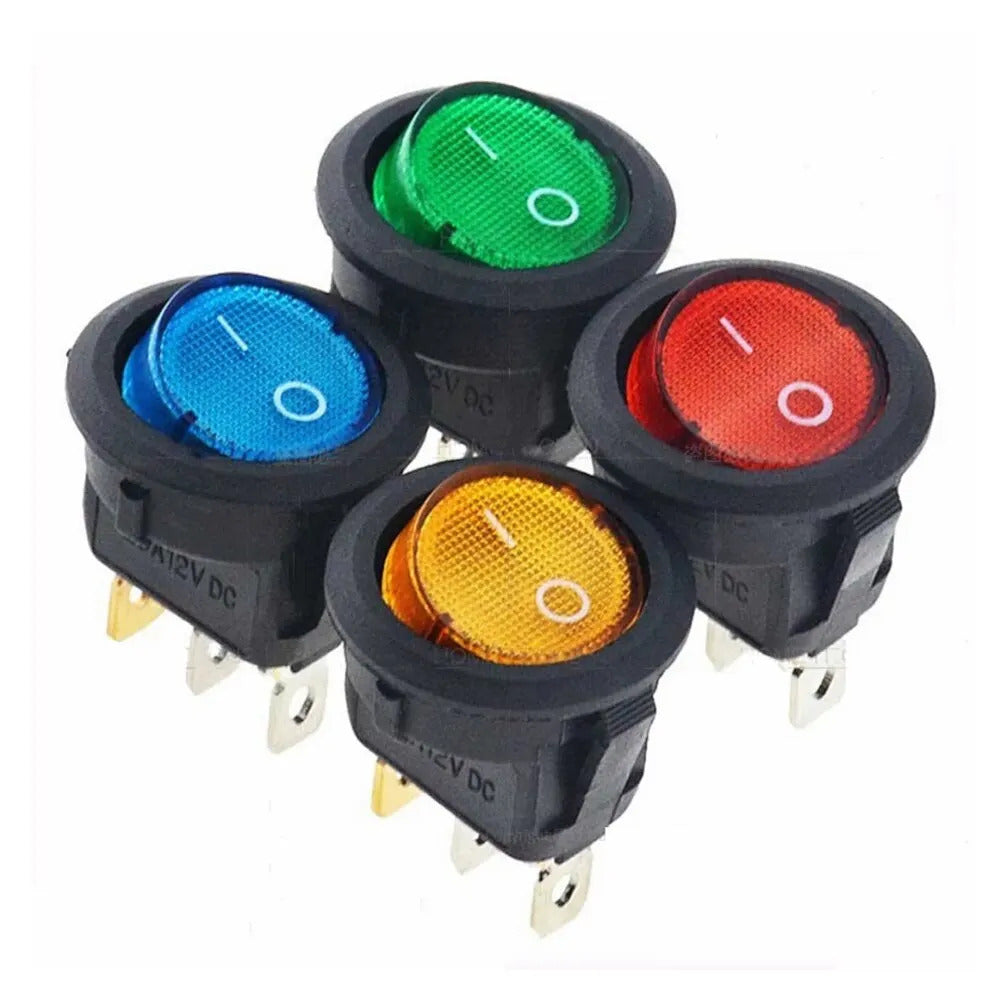

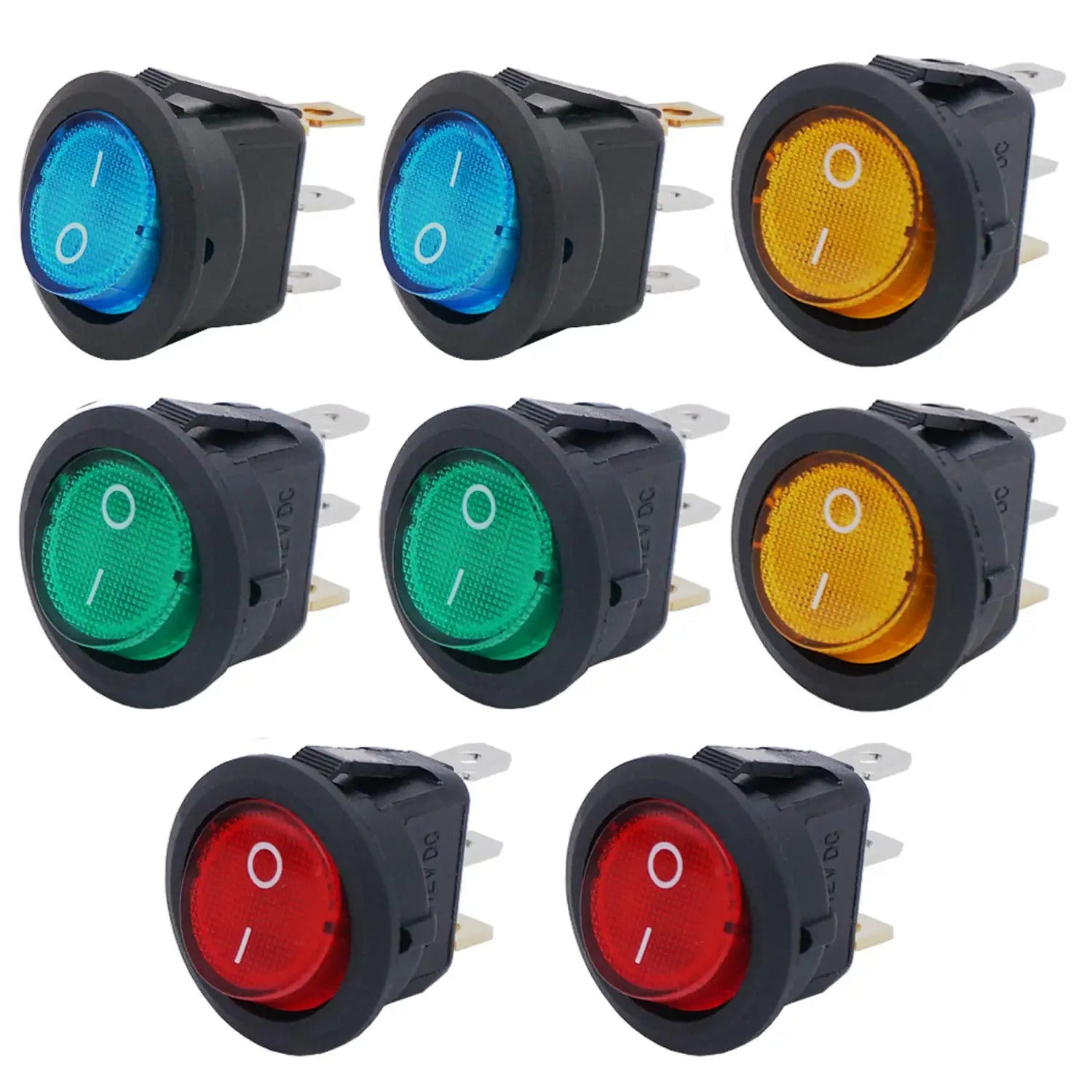

• 3.【Common Type】8Pcs SPST, ON-OFF, 3 Pins, Red/Blue/Green/Yellow each 2pcs
• 4.【Voltage】AC 250V/6A ; 125V/10A.
• 5. using rocker switch size】size: 23x28.5mm/ 0.9 "x 1.12" mounting hole size: 19mm/ 0.75 "(diameter)
Specification:

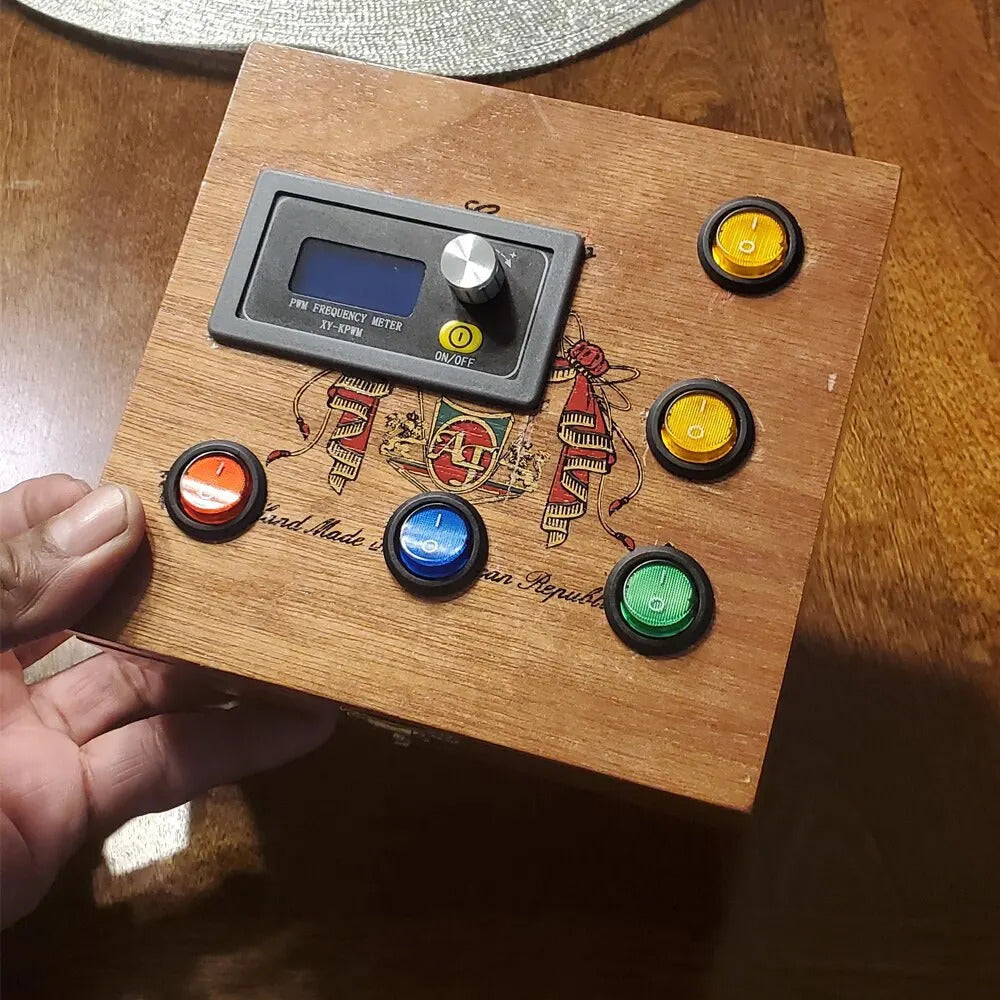

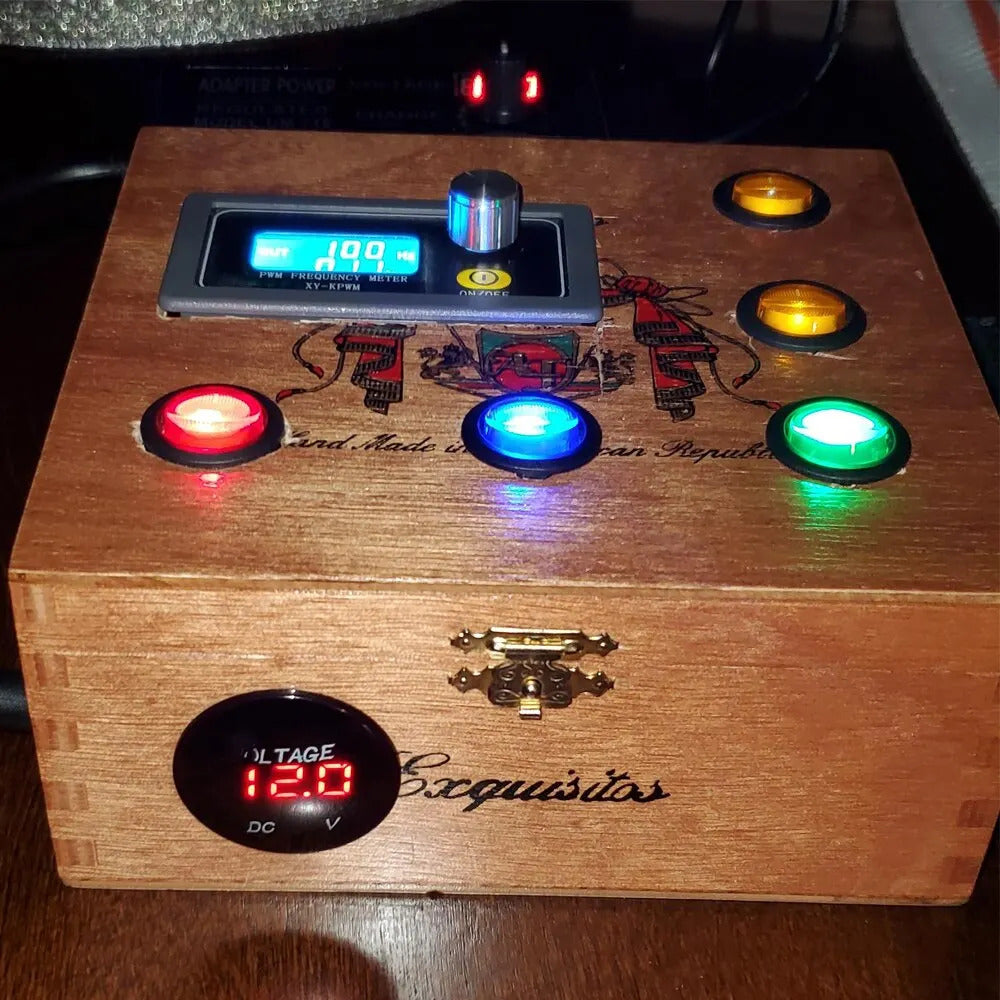

• Mainly used in water dispenser, treadmill, speaker, battery car, motorcycle, TV, coffee pot, row plug, massage machine, etc.

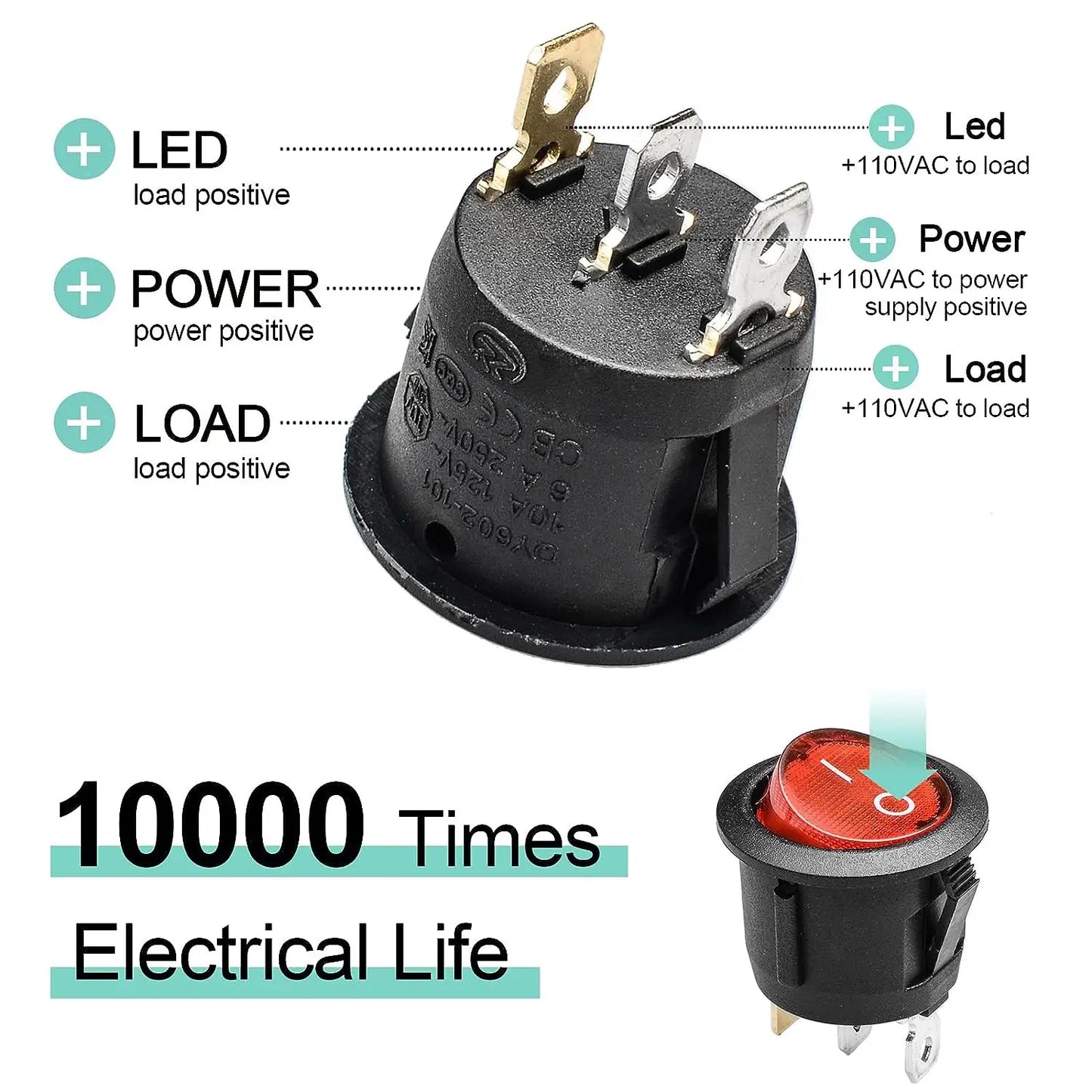

• SPST on-off control and 3 terminals.
• Colour: black/red LED
• Material: Plastic + Copper
• Performance parameters
• Panel Hole Diameter: 19mm/0.75"
• Electrical Ratings 10A/125VAC；6A/250VAC
• Electrical Life 10,000 cycles typical
• Contact Resistance <50 mΩ initial
• Dielectric Strength 1500Vrms min
• Insulation Resistance > 100MΩ min
• Operating Temperature -25°C to 85°C
• Storage Temperature -25°C to 85°C
Package included:
• 8Pcs SPST, ON-OFF, 3 Pins, Red/Blue/Green/Yellow each 2pcs
