• On/OFF Toggle Switch: This is an SPST toggle switch, 2 pin switch, 2 position design. When turn the switch ON, it will stay at ON position until manually switch it off.
• Rating: 30a 12V DC; 15A 24V DC; 20A 125V AC; heavy duty Toggle switch 12V design.

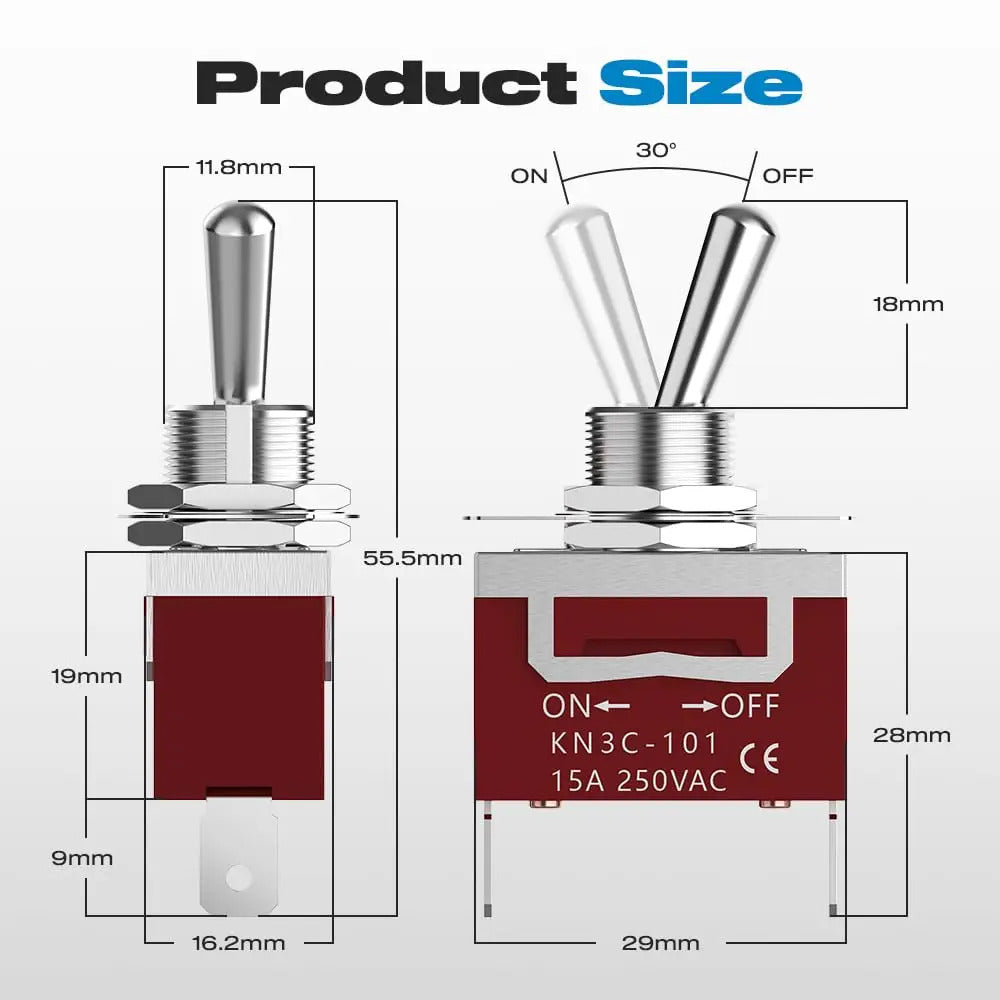

• Mounting Hole Size: The mounting hole size of this 12 volt toggle switch is 12mm (0.47 inch).

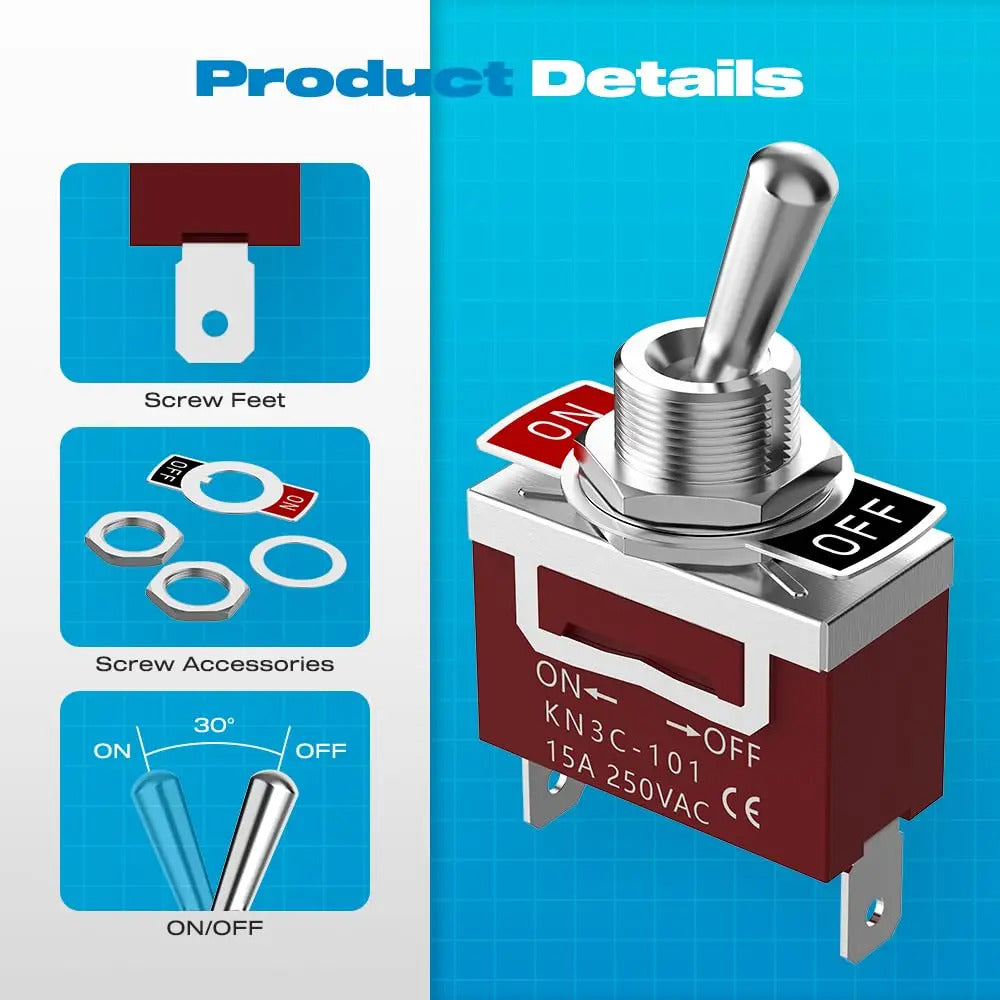

• Feature: 12v toggle switch with screw terminal. There is a gap on this 2 position toggle switch to fix the ON/OFF plate and prevent the plate from spinning on the switch. In addition, for becoming waterproof toggle switch 12v marine, this 2 way switch will come with a toggle switch cover.

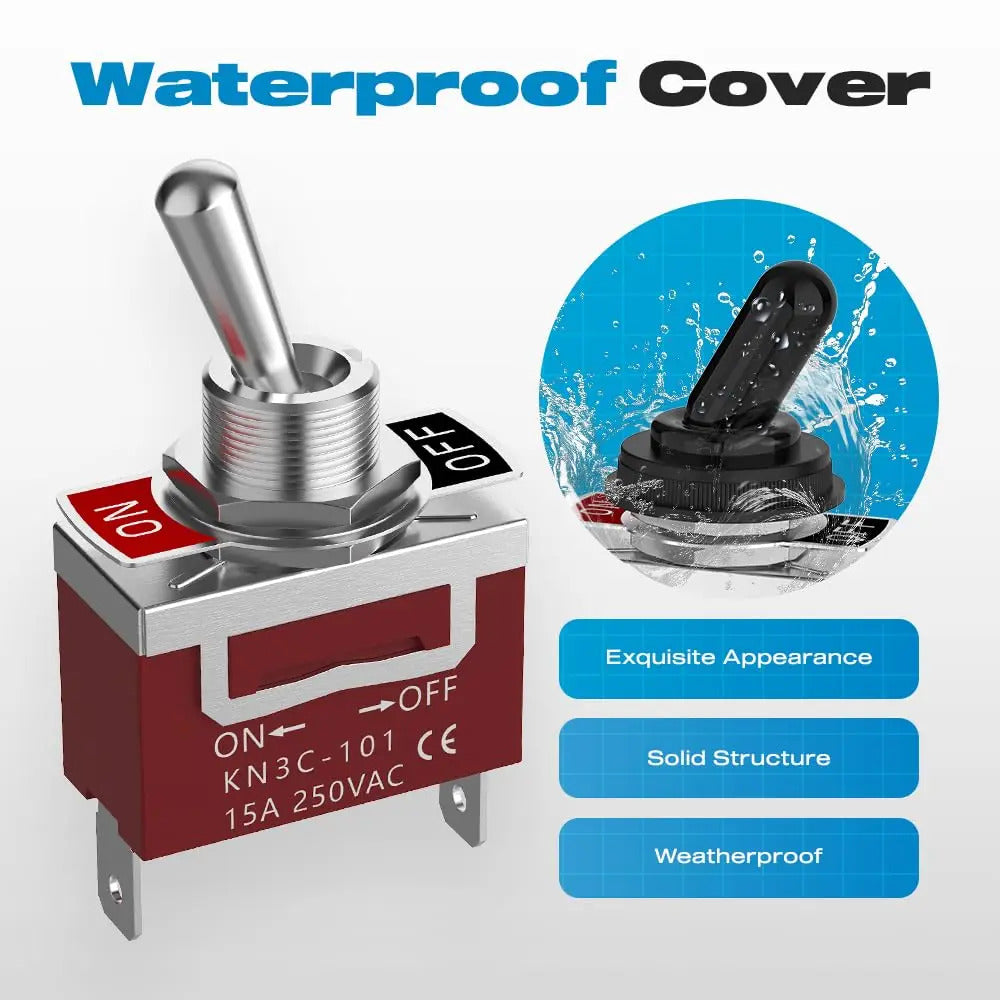

• Waterproof: The marine toggle rocker switch can reach IP65 waterproof rating after installing the rubber boot cover, suitable for automotive, car, truck, boat, yacht, DIY projects, household appliances, etc.

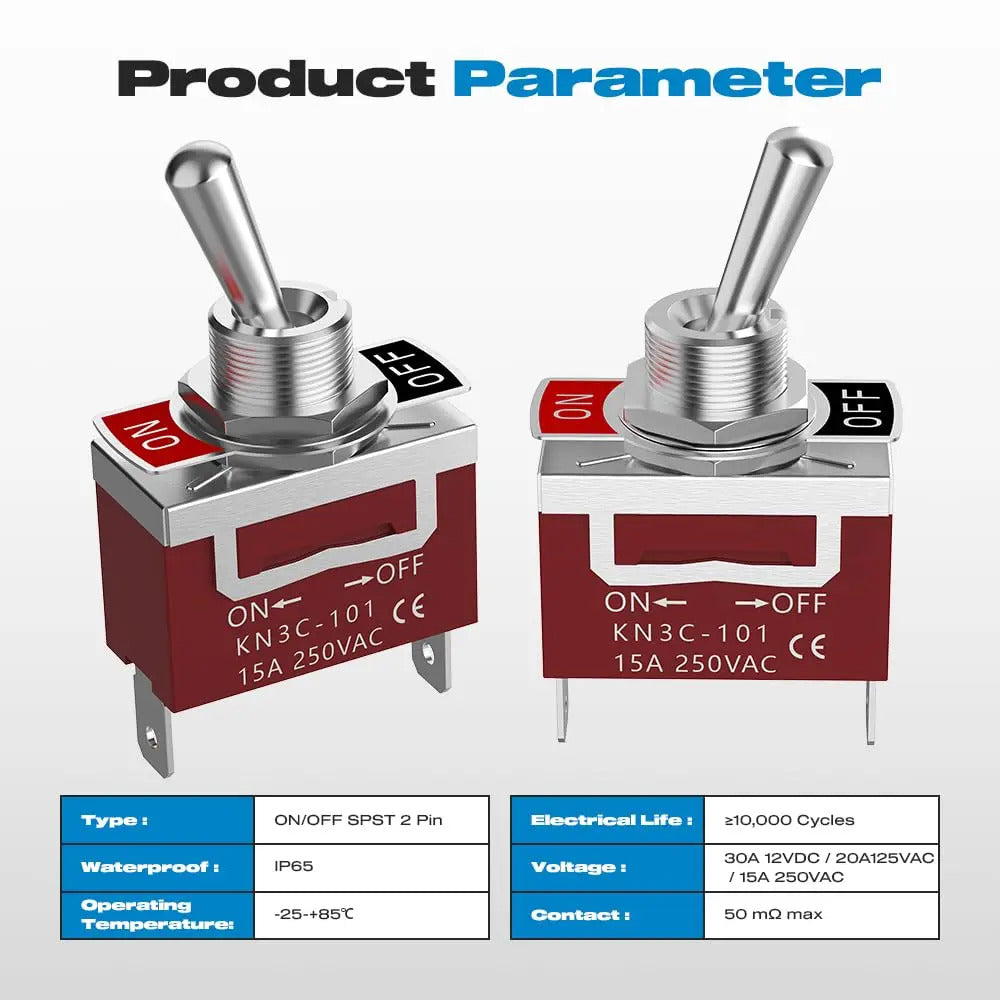

Specification:
DC Rating 30A 12V; 15A 24V
Waterproof Degree IP65
AC Rating 20A 125V; 15A 250V
Other protection Weatherproof; Dustproof
Terminals 2 Pin Screw Terminal
Function SPST ON OFF 2 Position
Mounting Hole Size 12MM (about 0.472")
Feature Heavy Duty
Package included:
2Pcs Marine Toggle Switch
